Cooling Fan Module Connector End View (C1554)

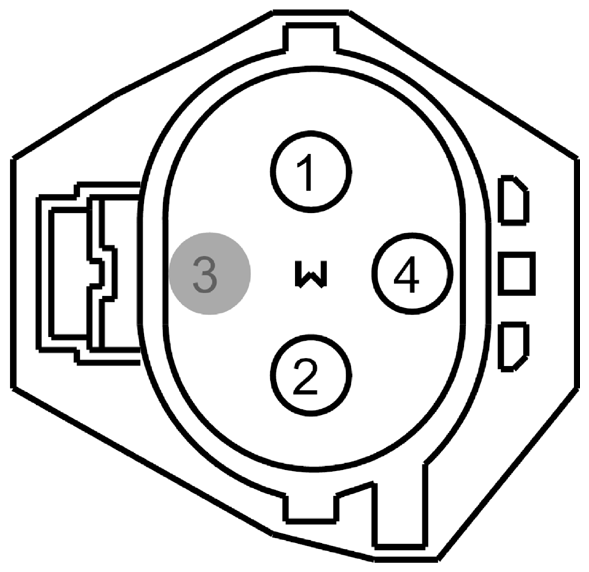

Fig 1: Identifying Cooling Fan Module Connector (C1554)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CEC07 (BN)	10	RELAY - ENGINE COOLING FAN HIGH SPEED
2	GD120 (BK-GN)	10	GROUND - FENDER FRONT LEFT
3	*	*	Not Used
4	VE230 (VT)	20	#N/A

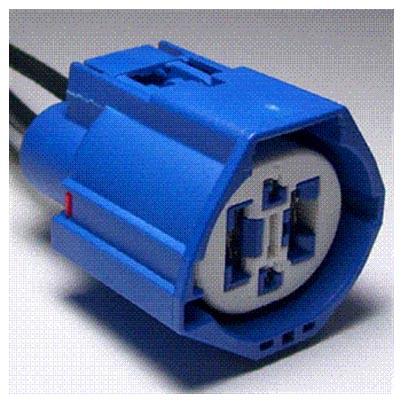

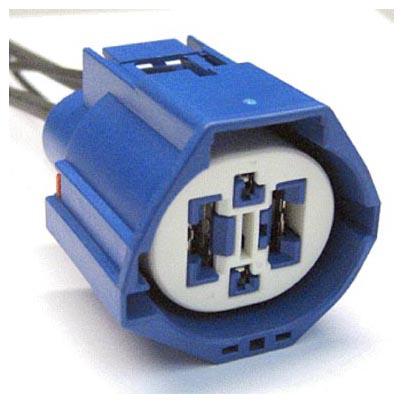

Available Pigtail Kits
Pigtail Kit Part Number WPT-1361	Service Part Number: 9U2Z-14S411-LB  Gauge: 10 16  Pin material: Tin (greased)  Cavities: 4  Vehicle Uses Motor - Electric Water Pump Motor - Engine Cooling Fan
Pigtail Kit Part Number WPT-935	Service Part Number: 9U2Z-14S411-LA  Gauge: 10 16  Pin material: Tin  Cavities: 4  Vehicle Uses Motor - Engine Cooling Fan
