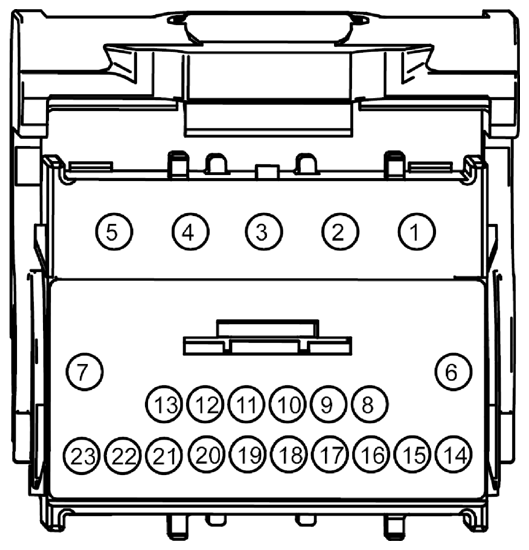

| 1 |
RPK01 (WH-GN) |
22 |
CTRL MOD. - KEYLESS VEHICLE # ANTENNA HANDLE DRIVER - |
|
| 2 |
RPK05 (YE-OG) |
22 |
CTRL MOD. - KEYLESS VEHICLE # ANTENNA INTERIOR 1 (FRONT) - |
|
| 3 |
RPK02 (GY-YE) |
22 |
CTRL MOD. - KEYLESS VEHICLE # ANTENNA HANDLE PASSENGER - |
|
| 4 |
RPK08 (BN-VT) |
22 |
CTRL MOD. - KEYLESS VEHICLE # ANTENNA TRUNK INTERIOR - |
|
| 5 |
RPK06 (BU-WH) |
22 |
CTRL MOD. - KEYLESS VEHICLE # ANTENNA INTERIOR 2 (CENTER) - |
|
| 6 |
* |
* |
Not Used |
|
| 7 |
RPK07 (GN-OG) |
22 |
CTRL MOD. - KEYLESS VEHICLE # ANTENNA TRUNK EXTERIOR - |
|
| 8 |
VPK01 (BN-YE) |
22 |
CTRL MOD. - KEYLESS VEHICLE # ANTENNA HANDLE DRIVER + |
|
| 9 |
VPK05 (BN-GN) |
22 |
CTRL MOD. - KEYLESS VEHICLE # ANTENNA INTERIOR 1 (FRONT) + |
|
| 10 |
VPK02 (VT-WH) |
22 |
CTRL MOD. - KEYLESS VEHICLE # ANTENNA HANDLE PASSENGER + |
|
| 11 |
VPK08 (WH-OG) |
22 |
CTRL MOD. - KEYLESS VEHICLE # ANTENNA TRUNK INTERIOR + |
|
| 12 |
* |
* |
Not Used |
|
| 13 |
* |
* |
Not Used |
|
| 14 |
* |
* |
Not Used |
|
| 15 |
* |
* |
Not Used |
|
| 16 |
VPK07 (VT) |
22 |
CTRL MOD. - KEYLESS VEHICLE # ANTENNA TRUNK EXTERIOR + |
|
| 17 |
VPK06 (GY-VT) |
22 |
CTRL MOD. - KEYLESS VEHICLE # ANTENNA INTERIOR 2 (CENTER) + |
|
| 18 |
* |
* |
Not Used |
|
| 19 |
* |
* |
Not Used |
|
| 20 |
* |
* |
Not Used |
|
| 21 |
* |
* |
Not Used |
|
| 22 |
* |
* |
Not Used |
|
| 23 |
* |
* |
Not Used |
|
