Front Disc Brake: Removal

WARNING: This page is about a different car, the 2015 Ford Fiesta. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

1.

Refer to: Brake and Clutch Systems Health and Safety Precautions

2.

Remove the wheels and tire. REFER to: Wheel and Tire

Refer to: Brake Caliper - Detach from the wheel knuckle

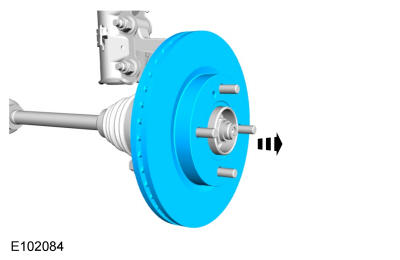

3.

Remove the brake disc.

GFD52298

Courtesy of FORD MOTOR COMPANY

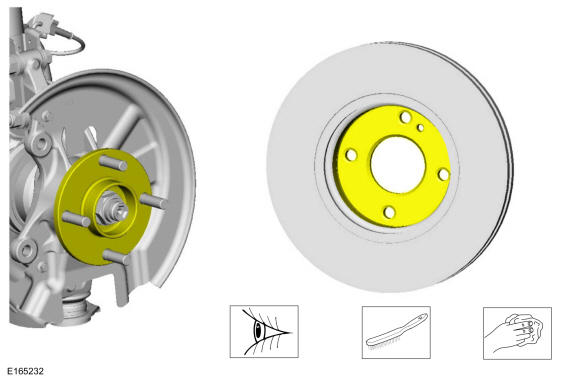

4.

NOTE: Make sure that the mating faces are clean and free of foreign material.

Clean the brake disc-to-wheel hub mating surfaces.

Material

: Metal Brake Parts Cleaner / PM-4-A, PM-4-B

GFD52299

Courtesy of FORD MOTOR COMPANY
