Front Brake Pads: Installation

WARNING: This page is about a different car, the 2015 Ford Fiesta. However, it is still accessible from the selected car via links, so may be relevant.

1.

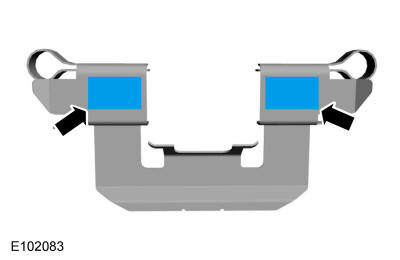

NOTE: Make sure that the mating faces are clean and free of foreign material.

Clean the mating surfaces.

Courtesy of FORD MOTOR COMPANY

2.

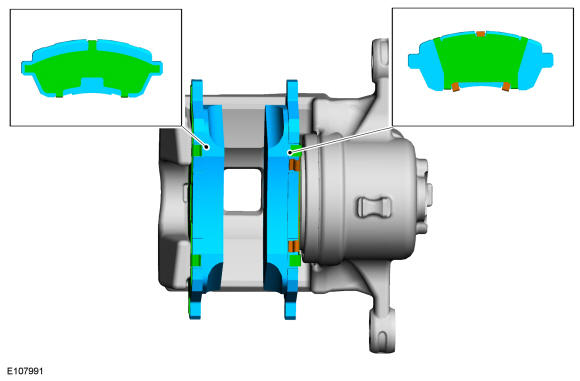

Install the brake pad shims as shown.

Courtesy of FORD MOTOR COMPANY

3.

To install, reverse the removal procedure.

4.

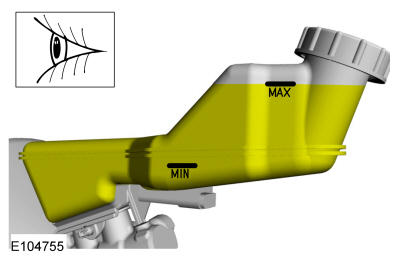

Depress the brake pedal, check the brake fluid level in the brake fluid reservoir and top up as necessary with brake fluid.
Material

: Motorcraft® DOT 4 LV High Performance Motor Vehicle Brake Fluid / PM-20 (WSS-M6C65-A2)

Courtesy of FORD MOTOR COMPANY
