In-Line Fuse 1 Connector End View (C1105)

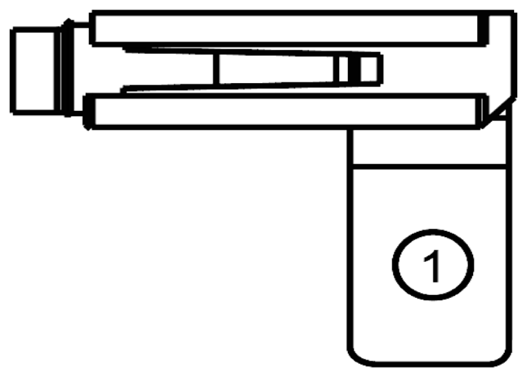

Fig 1: Identifying In-Line Fuse 1 Connector (C1105)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VDC60 (YE-VT)	18	SENSOR - BATTERY MONITORING SYSTEM # BATTERY
