Selector Lever Assembly: Disassembly

NOTE: Removal steps in this procedure may contain installation details.

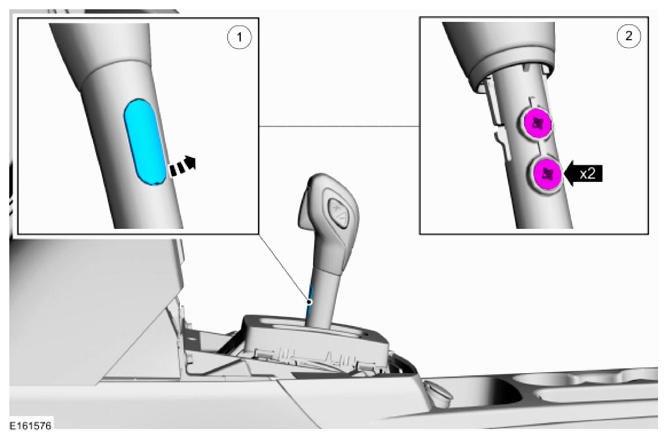

  1. Torque:  89 lb.in (10 Nm)
    G09551713

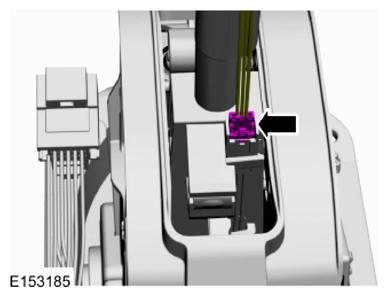

  2. G09551706

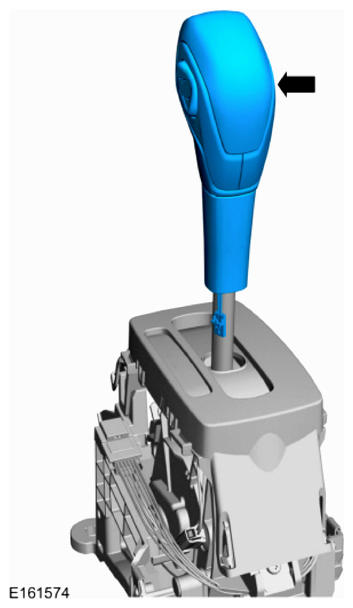

  3. G09551708
  4. Refer to: SELECTOR LEVER ASSEMBLY  .

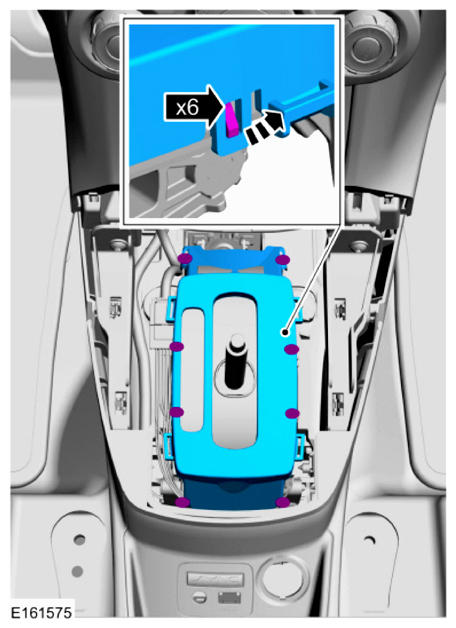

  5. G09551709
