OEM Ground Distribution: Grounds: Notes

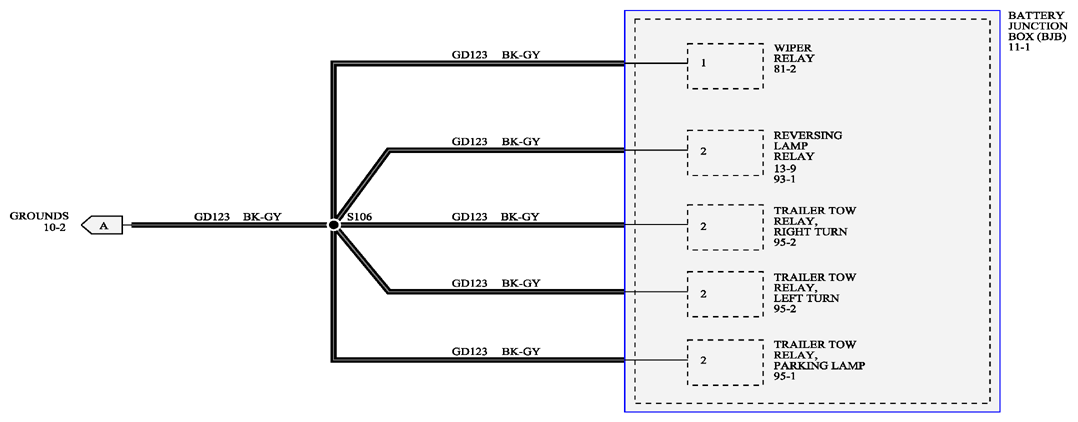

Fig 1: Ground System - Wiring Diagram (1 Of 2)

G09257414

Courtesy of FORD MOTOR CO.

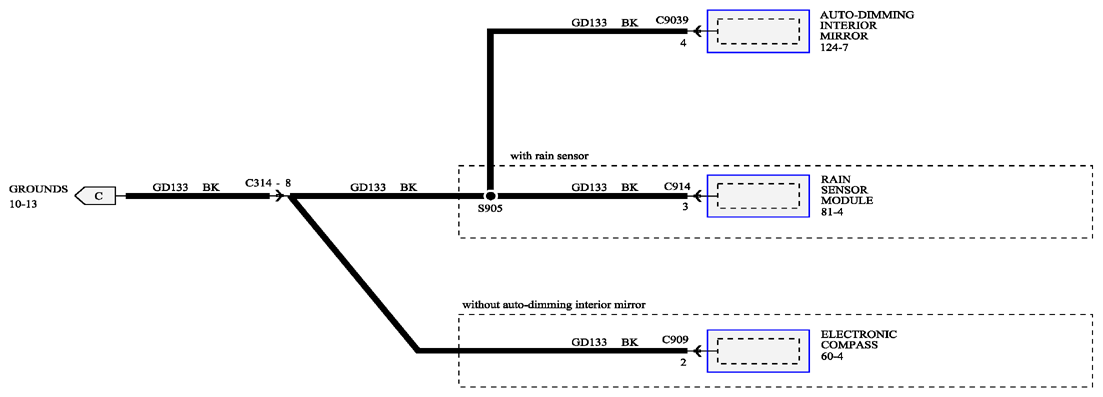

Fig 2: Ground System - Wiring Diagram (2 Of 2)

G09257425

Courtesy of FORD MOTOR CO.
