Selector Lever Cable - Column Shift: Installation

  1. Place the manual control lever in DRIVE.
    1. Rotate the manual lever counterclockwise 3 detents into the manual 1st position.
    2. Rotate the manual lever clockwise 3 detents into Drive.
      G08341239
  2. NOTE: When installing the selector lever cable, make sure that the selector lever cable locking tabs are locked in place. Press the selector lever cable into the bracket and listen for the cable to click in place. Pull back on the selector lever cable to make sure that it is locked into the bracket.

    Install the selector lever cable into the selector lever cable bracket.

    G09544028

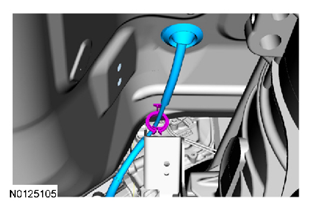

  3. Attach the selector lever cable to the routing clip.
    G08341235

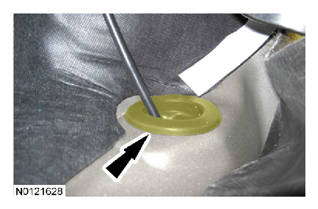

  4. Push the rubber grommet and selector lever cable up through the floor pan.
    G08341234
  5. NOTE: When installing the selector lever cable, make sure that the selector lever cable locking tabs are locked in place. Press the selector lever cable into the bracket and listen for the cable to click in place. Pull back on the selector lever cable to make sure that it is locked into the bracket.

    Connect the selector lever cable onto the steering column.

    1. Connect the selector lever cable retainer.
    2. Connect the selector lever cable onto the steering column bracket.
    3. Connect the selector lever cable onto the selector lever mechanism.
      • Listen for the audible click.
      • Pull back on the selector lever cable to make sure that it is correctly installed.
        G08341243
  6. Install the steering column shrouds. REFER to STEERING COLUMN .
  7. Unlock the lock tab on the selector lever cable by sliding it up.
    G09544032
  8. Connect the selector lever cable onto the manual control lever and move the locking tab down.
    • Listen for the audible click, then push back on the locking tab to verify it is locked.
    • Pull back on the selector lever cable to verify it is installed correctly to the manual lever.
      G09543970
  9. If equipped, install the selector lever cable splash shield and the nut.
    • Tighten to 12 Nm (106 lb-in).
      Fig 1: Locating Selector Lever Cable Splash Shield Mounting Nut
      G07412445Courtesy of FORD MOTOR CO.
  10. Verify the vehicle will start in PARK or NEUTRAL and the backup lamps illuminate in REVERSE.
