Selector Lever Bezel: Installation

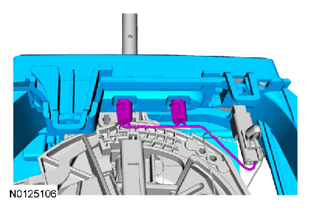

  1. Connect the electrical harness to the selector lever bezel.
    G08341269

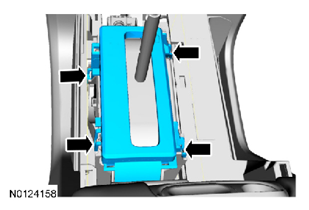

  2. Install the selector lever bezel onto the selector lever housing.
    G08341268
  3. Connect the select shift and the Tow/Haul electrical connectors and install the selector lever knob.

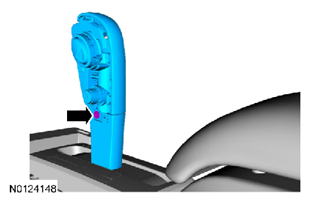

  4. Install a new LH selector lever knob screw.
    G08341254
  5. Install a new RH selector lever knob screw.
    G08341253

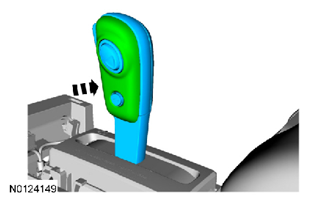

  6. Install a new LH selector lever knob cover.
    G08341257

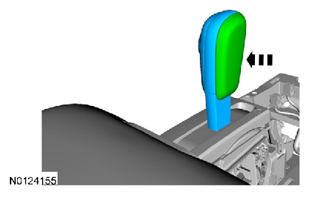

  7. Install a new RH selector lever knob cover.
    G08341258

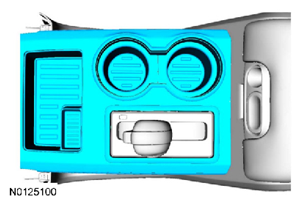

  8. Connect and install the floor console upper finish panel.
    G08341259

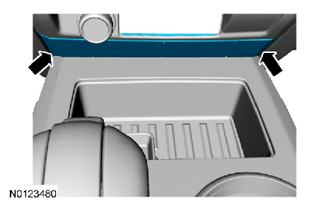

  9. Install the instrument panel to floor console finish panel.
    G08341262
