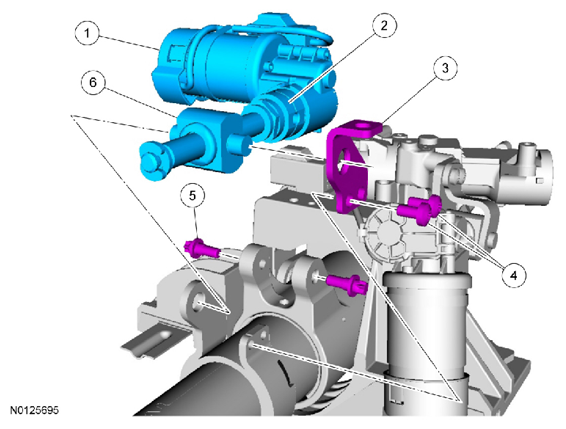

Steering Column Motor - Telescopic: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
| Item | Part Number | Description |
|---|---|---|
| 1 | 3F797 | Steering column motor (telescopic) |
| 2 | - | Leadscrew housing (part of 3F797) |
| 3 | - | Trunion nut capture bracket (part of 3C529) |
| 4 | - | Trunion nut capture bracket screws (2 required) (part of 3C529) |
| 5 | - | Steering column motor screws (2 required) (part of 3C529) |
| 6 | - | Trunion nut (part of 3F797) |
