Roof Opening Panel Control Switch: Schematic

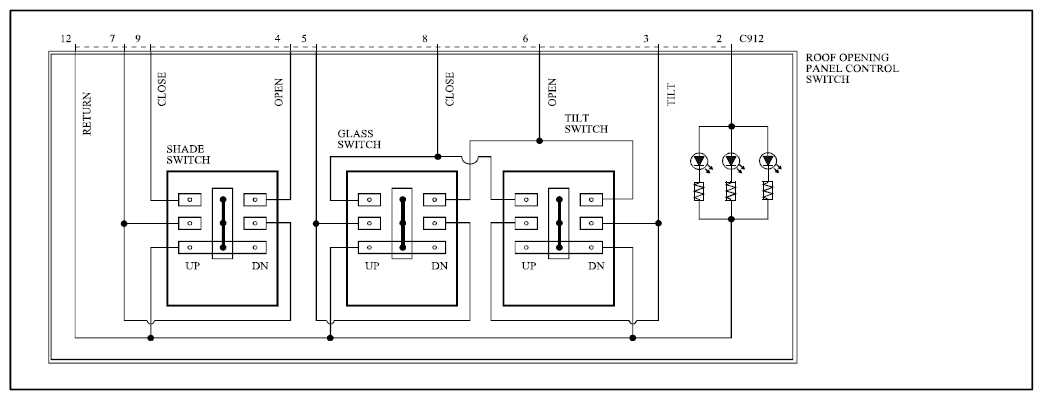

Fig 1: Roof Opening Panel Control Switch Schematic

G09231123

Courtesy of FORD MOTOR CO.
