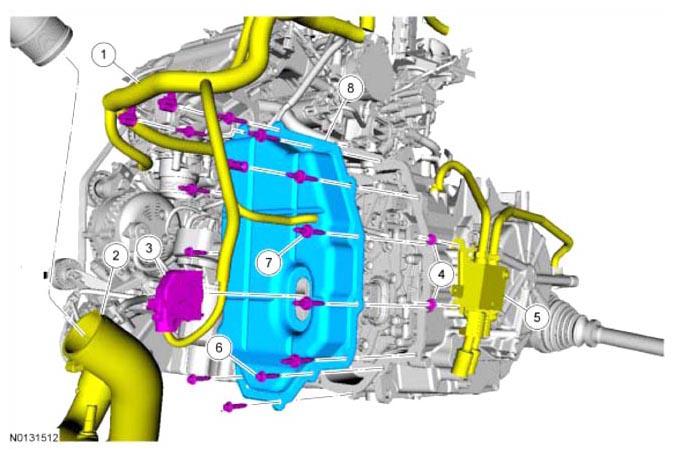

Exploded View
| Item | Part Number | Description |
|---|---|---|
| 1 | 14B060 | Wiring harness |
| 2 | 6K813 | CAC outlet hose |
| 3 | - | Transmission electrical connector (part of 14B060) |
| 4 | W520101 | Transmission fluid thermal bypass valve nuts |
| 5 | 7H420 | Transmission fluid thermal bypass valve |
| 6 | W500214 | Main control cover bolt |
| 7 | W714629 | Main control cover studbolt |
| 8 | 7G004 | Main control cover |
