Seat Control Switch, 10-way - Right: Schematic

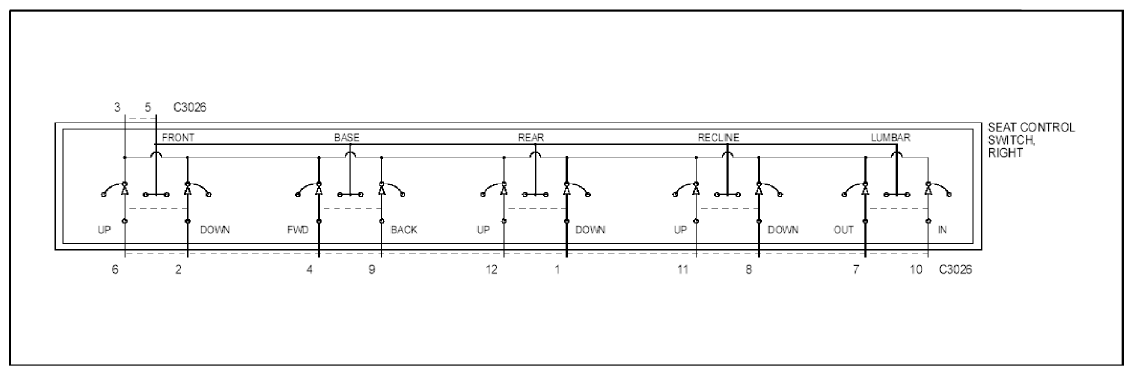

Fig 1: Seat Control Switch, 10-Way - Right Schematic

G09224505

Courtesy of FORD MOTOR CO.
