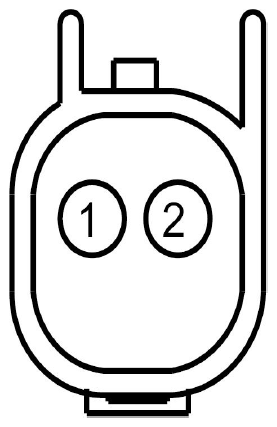

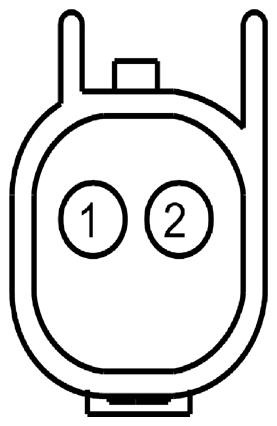

Tweeter, Left Front Connector End View (C513)

Fig 1: Identifying Tweeter, Left Front Connector (C513)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VME08 (GN-OG)	16	CTRL MOD. - AUDIO # SPEAKER LEFT FRONT TWEETER	without THX audio
1	VME08 (GN-OG)	18	CTRL MOD. - AUDIO # SPEAKER LEFT FRONT TWEETER	with THX audio
2	RME08 (GY-OG)	16	CTRL MOD. - AUDIO # SPEAKER LEFT FRONT TWEETER	without THX audio
2	RME08 (GY-OG)	18	CTRL MOD. - AUDIO # SPEAKER LEFT FRONT TWEETER	with THX audio
