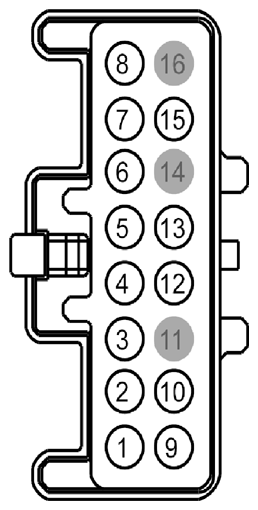

| 1 |
SBP27 (BU-RD) |
16 |
FUSE - 27 OR CIRCUIT BREAKER |
|
| 2 |
CDC32 (BN-YE) |
14 |
SWITCH - IGNITION # RUN |
|
| 3 |
CDC33 (VT-GN) |
14 |
SWITCH - IGNITION # RUN; ACCESSORY |
|
| 4 |
CLS17 (YE-GY) |
18 |
SWITCH - BRAKE PEDAL POSITION (BPP) - NORMAL OPEN |
|
| 5 |
CDC30 (BU-GY) |
18 |
SWITCH - IGNITION # KEY IN |
|
| 6 |
CDC34 (WH-OG) |
18 |
SWITCH - IGNITION # RUN; START |
|
| 7 |
CDC35 (BU-WH) |
20 |
SWITCH - IGNITION # START |
|
| 8 |
VLN33 (GY-VT) |
18 |
CTRL MOD. - INTERIOR/COURTESY LAMP DIMMING (THEATRE) |
|
| 9 |
SRH01 (YE-RD) |
20 |
RELAY - HORN |
|
| 10 |
CPL27 (WH-BN) |
20 |
SWITCH - LATCH DRIVER # LOCK |
|
| 11 |
* |
* |
Not Used |
|
| 12 |
CLS30 (VT-WH) |
18 |
RELAY - PARK LAMP |
|
| 13 |
CPL25 (BU-OG) |
20 |
SWITCH - HOOD # AJAR |
|
| 14 |
* |
* |
Not Used |
|
| 15 |
GD138 (BK-WH) |
16 |
GROUND - PILLAR A RIGHT |
|
| 16 |
* |
* |
Not Used |
|
