Generator Connector End View (C102B)

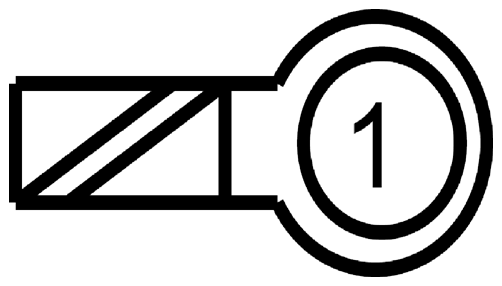

Fig 1: Identifying Generator Connector (C102B)

G09220529

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	SDC02 (RD)	4	BATTERY-#PLUS
