Plenum Chamber: Notes

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

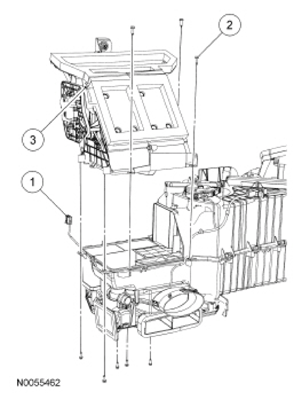

Fig 1: Identifying Plenum Chamber, Electrical Connector And Mounting Screws

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	18B518	Mode door actuator electrical connector (part of 18B518)
2	W701696	Plenum chamber screw (8 required)
3	18471	Plenum chamber
