Main Control Valve Body: Installation

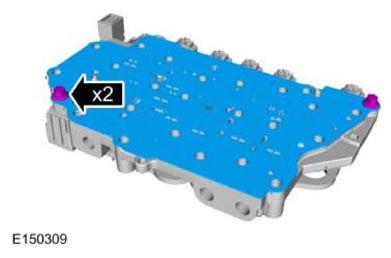

Install the new separator plate and the separator plate-to-solenoid body bolts.
Torque: 89 lb.in (10 Nm)

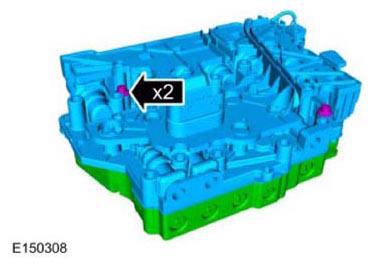

Install the solenoid body onto the main control valve body. Install the solenoid body-to-valve body bolts.
Torque: 89 lb.in (10 Nm)
NOTE: Position the OSS and TR sensor wiring harnesses aside.

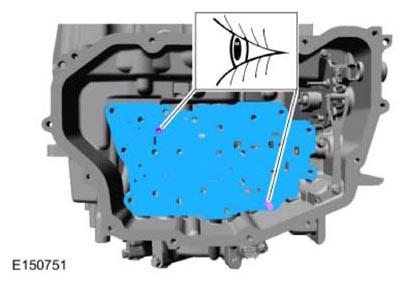

Install the new main control-to-transmission case separator plate.

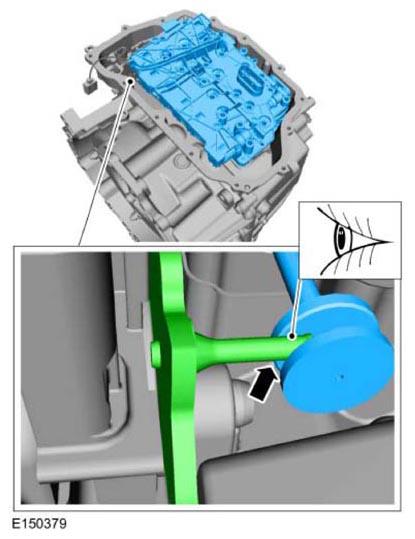

NOTE: Be sure that the manual lever pin (part of the TR sensor) is correctly installed in the manual valve.

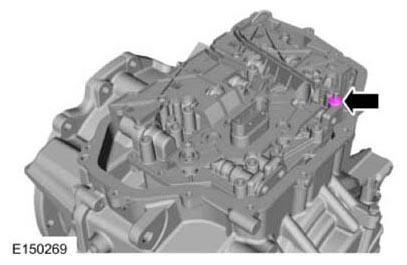

Install the main control assembly.
Install the main control nut hand-tight.

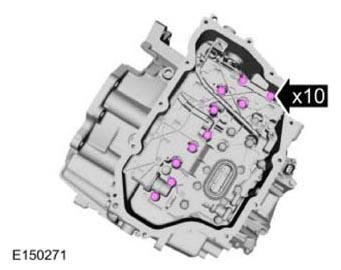

Install the short main control-to-transmission case bolts hand-tight.

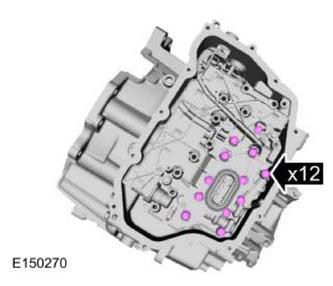

Install the long main control-to-transmission case bolts hand-tight.

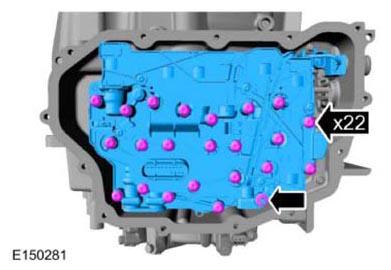

Tighten the main control-to-transmission case bolts and nut in a crisscross pattern.
Torque: 89 lb.in (10 Nm)

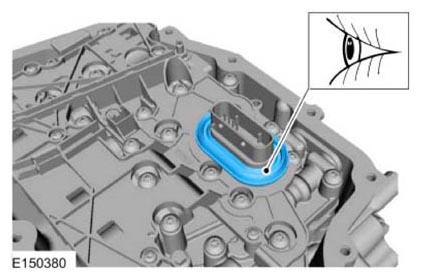

NOTE: Be sure the main control-to-cover seal is installed with the holes facing up.

Install the main control-to-cover seal.

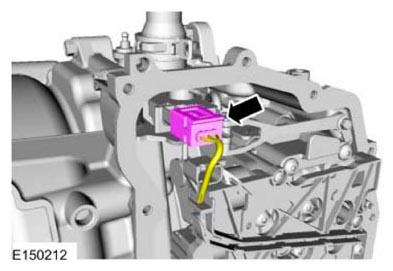

Connect the OSS sensor electrical connector.

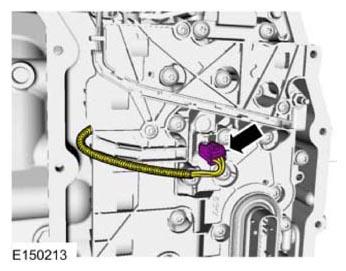

Connect the TR sensor electrical connector.
Install the main control cover.
Refer to: MAIN CONTROL COVER .
NOTE: The solenoid body strategy data file and solenoid body identification must be updated anytime a new solenoid body is installed. A new solenoid body service tag must be installed over the current solenoid body service tag on top of the transmission case.

Refer to: TRANSMISSION STRATEGY DOWNLOAD .
