Main Control Cover: Installation

NOTE: Install the studbolts in the locations noted during removal.

Torque : 106 lb.in (12 Nm)

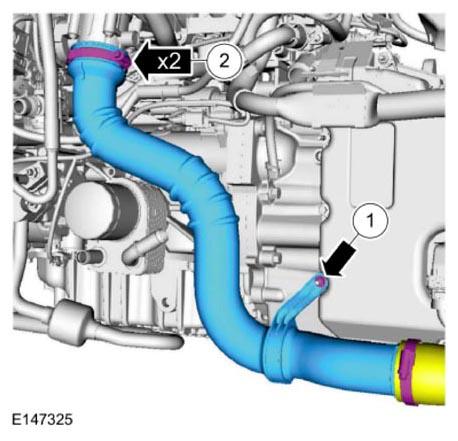

1.6L
1. Torque : 89 lb.in (10 Nm)
2. Torque : 44 lb.in (5 Nm)
Torque : 80 lb.in (9 Nm)

2.0L
Torque : 44 lb.in (5 Nm)

2.0L or 2.5L
All vehicles
Refer to: AIR CLEANER - 1.6L EcoBoost (132kW/180PS) - Sigma .
Refer to: AIR CLEANER - 2.0L EcoBoost (177kW/240PS) - MI4 .

Refer to: AIR CLEANER - 2.5L Duratec (125kW/170PS) .
Refer to: TRANSMISSION FLUID DRAIN AND REFILL .
Refer to: ENGINE FRONT UNDERSHIELD .
