Transmission Case: Disassembly

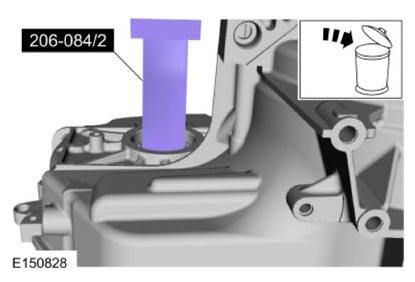

  1. NOTE: Press the bushing out of the transmission case from the outside to the inside so the transmission case rests on a flat surface.

    Use Special Service Tool: 206-084 Installer, Wheel Speed Sensor Ring  .

    Use the General Equipment: Hydraulic Press

    G08636877
  2. G08636878
  3. G08636879
