Disassembly and Assembly of Subassemblies: Differential: Disassembly

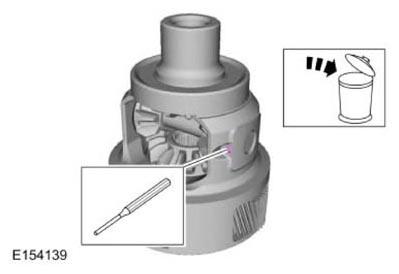

  1. Use the General Equipment: Punch
    G08636885

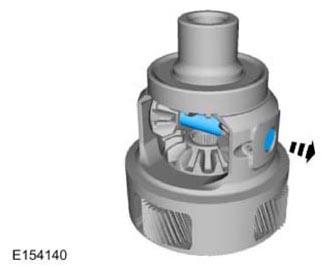

  2. G08636886

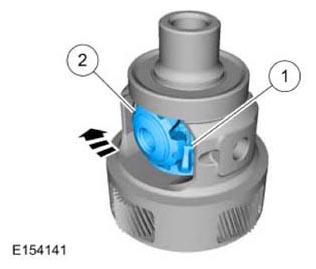

  3. NOTE: Do not mix the washers from the side or spider gears. Assembly of the differential with the wrong washers can cause excessive wear to the differential carrier, spider or side gears.

    Callouts

    1. 1: Side gear
    2. 2: Spider gear
      G08636887

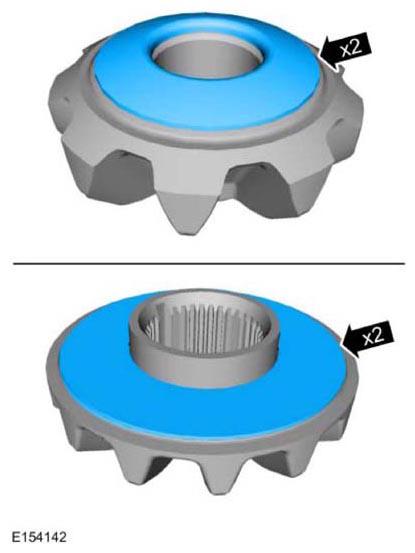

  4. G08636888
