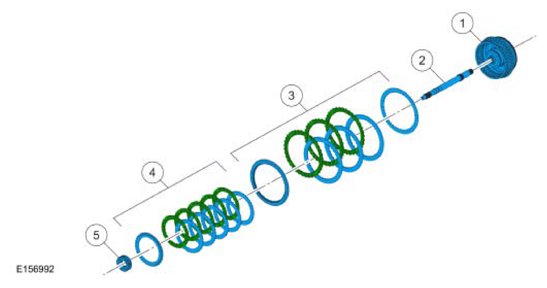

Input Shaft Exploded View

G08636142
Item Part Number Description
1 7G384 Direct (3, 5, R)/overdrive (4, 5, 6) clutch hub
2 7F213 Input shaft
3 7B164 Direct (3, 5, R) clutch
4 7B164 Overdrive (4, 5, 6) clutch
5 7D491 Center planetary sun gear
