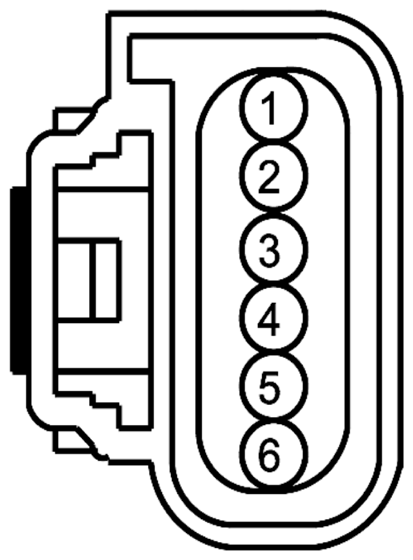

Throttle Control Unit Connector End View (C1449)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CE412 (YE-VT) | 20 | CTRL MOD. - POWERTRAIN # THROTTLE POSITION 1 (TP1) | |
| 1 | CE412 (YE-VT) | 18 | CTRL MOD. - POWERTRAIN # THROTTLE POSITION 1 (TP1) | |
| 2 | CE426 (BU-GN) | 20 | CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCREF) | |
| 2 | CE426 (BU-GN) | 18 | CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCREF) | |
| 3 | VE818 (BN) | 20 | SENSOR - POWERTRAIN # THROTTLE POSITION 2 (TP2) | |
| 4 | RE134 (BU-OG) | 20 | CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCRTN) | |
| 5 | LE134 (YE) | 20 | CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCREF) | |
| 6 | VE819 (GN-VT) | 20 | SENSOR-THROTTLE POSITION (TACM+) |

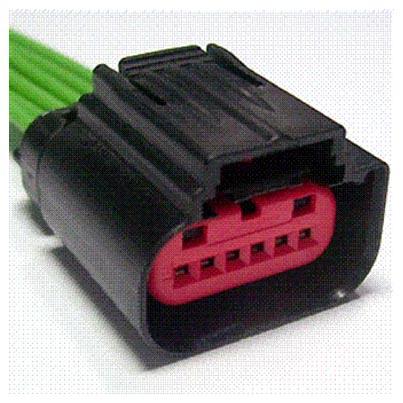

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1063 | Service Part Number: AU2Z-14S411-MA Gauge: 18 Pin material: Silver Cavities: 6 Vehicle Uses
|
