SUNLOAD Sensor Connector End View (C286)

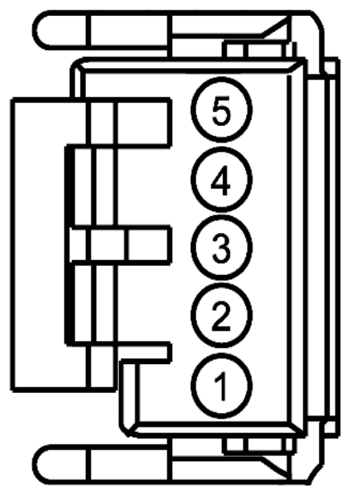

Fig 1: Identifying Sunload Sensor Connector (C286)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VH416 (VT-GY)	22	SENSOR - SUN LOAD # LEFT
2	VH417 (YE-OG)	22	SENSOR - SUN LOAD # RIGHT
3	RH105 (GN)	22	CTRL MOD. - CLIMATE # SENSOR RETURN 2
4	VLF14 (BU-BN)	22	SENSOR - AUTOLAMP DAY/NIGHT (AMBIENT LIGHT) +
5	RLF14 (GY-BN)	22	SENSOR - AUTOLAMP DAY/NIGHT (AMBIENT LIGHT) -
