Keyless Entry Keypad Connector End View (C530)

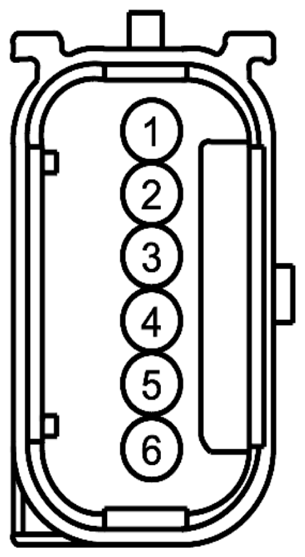

Fig 1: Identifying Keyless Entry Keypad Connector (C530)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	SBB48 (VT-RD)	20	FUSE OR CIRCUIT BREAKER
2	CPK28 (WH-GN)	20	CTRL MOD. - SWITCH KEYLESS KEYPAD ILLUMINATION
3	CPK29 (GY-BU)	20	SWITCH - KEYLESS KEYPAD LINE A
4	CPK30 (VT-GN)	20	SWITCH - KEYLESS KEYPAD LINE B
5	CPK31 (YE-GN)	20	SWITCH - KEYLESS KEYPAD LINE C
6	GD134 (BK-VT)	20	CTRL MOD. - SWITCH KEYLESS KEYPAD
