Four-Wheel Drive (4WD) Control Module Connector End View (C4379)

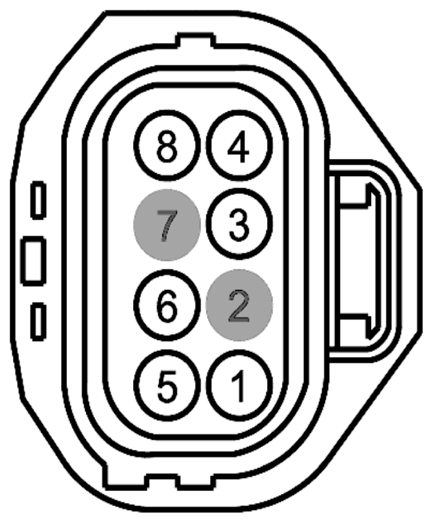

Fig 1: Identifying Four-Wheel Drive Control Module Connector (C4379)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CBB34 (VT-BN)	18	FUSE OR CIRCUIT BREAKER
2	*	*	Not Used
3	VCF35 (GN)	22	CTRL MOD. - POWERTRAIN # ALL WHEEL DRIVE COMMAND (AWDC)
4	GD151 (BK-GN)	18	GROUND - PILLAR D RIGHT (6L2T)
5	LCS14 (VT)	20	CTRL MOD. - SENSOR STEERING WHEEL TORQUE POS (+)
6	VCF34 (WH)	22	CTRL MOD. - ALL WHEEL DRIVE # MONITOR (AWDM)
7	*	*	Not Used
8	RCS14 (YE-BU)	20	CTRL MOD. - SENSOR STEERING WHEEL TORQUE NEG (-)

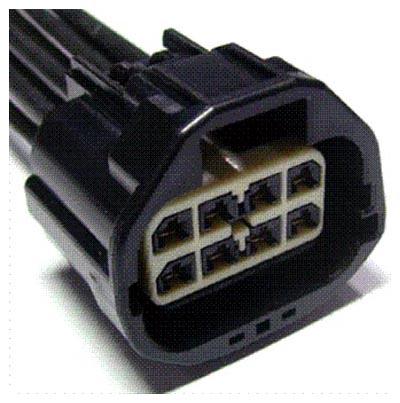

Available Pigtail Kits
Pigtail Kit Part Number WPT-1064	Service Part Number: AU2Z-14S411-ACA  Gauge: 12  Pin material: Tin  Cavities: 8  Vehicle Uses Module - All Wheel Drive
