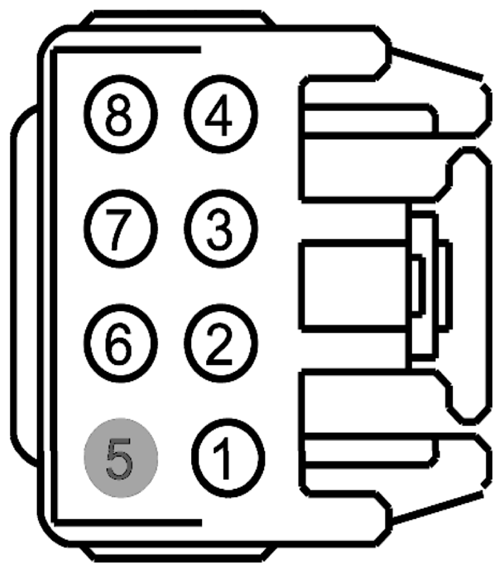

Driver Door Window Control Switch Connector End View (C504C)

Fig 1: Identifying Driver Door Window Control Switch Connector (C504C)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPW16 (BU-OG)	12	SWITCH - POWER WINDOW DRIVER # REAR LEFT UP
2	CPW15 (YE)	12	SWITCH - POWER WINDOW DRIVER # REAR LEFT DOWN
3	GD134 (BK-VT)	12	GROUND
4	CBB14 (VT-OG)	12	FUSE OR CIRCUIT BREAKER
5	*	*	Not Used
6	CPW17 (BN-GN)	12	SWITCH - POWER WINDOW DRIVER # REAR RIGHT DOWN
7	CPW18 (GY-VT)	12	SWITCH - POWER WINDOW DRIVER # REAR RIGHT UP
8	CPW14 (VT-WH)	12	CTRL MOD. - POWER WINDOW SWITCH REAR RIGHT RETURN

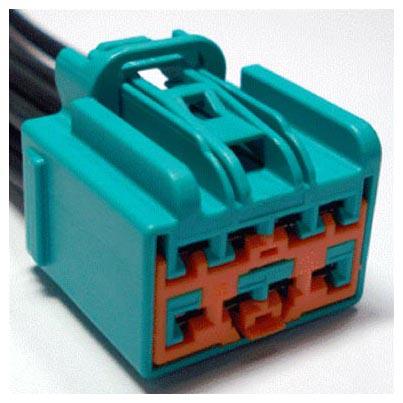

Available Pigtail Kits

Pigtail Kit Part Number WPT-1031

Service Part Number: 3U2Z-14S411-PPB  Gauge: 10 12  Pin material: Tin & Silver  Cavities: 8  Vehicle Uses Switch - Adjustable Pedal Switch - Convertable Top Switch - Door Lock (Cargo) Switch - Door Lock (LH) Switch - Door Lock (RH) Switch - Moon Roof/Sun Roof Switch - Power Window - Driver Switch - Power Window - LH - Rear Switch - Power Window - Passenger (Front) Switch - Power Window - RH - Rear Switch - Seat Lumbar Switch - Third Row Power Folding Seat
