Transfer Case Input Shaft Seal RH: Installation

WARNING: This page is about a different variant/trim than selected.

NOTE: The seal is correctly installed if it is flush with the transfer case cover.

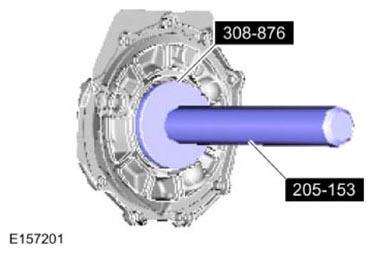

Use Special Service Tool: 308-875 Installer, Inboard Cover Seal ., 205-153 (T80T-4000-W) Handle .
Torque : 89 lb.in (10 Nm)
Refer to: Transfer Case (Installation).
