Front Disc Brake: Removal
WARNING: This page is about a different car, the 2015 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- 1.
Remove the wheel and tire. Refer to: Wheel and Tire .

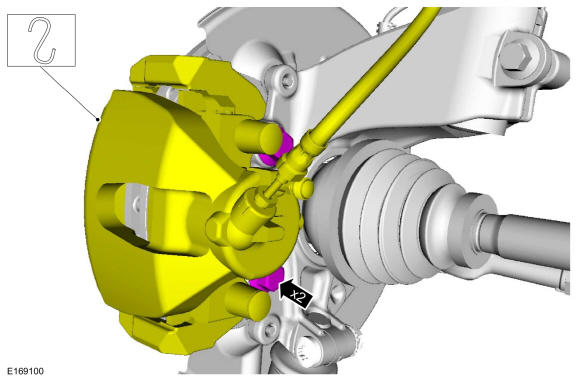

- 2.NOTE: Make sure that no load is placed on the brake hose.
Remove the bolts and position the brake caliper and anchor plate aside.
Torque: 129 lb.ft (175 Nm)
