Front Brake Caliper: Installation

WARNING: This page is about a different car, the 2015 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

1.

To install, reverse the removal procedure.

2.

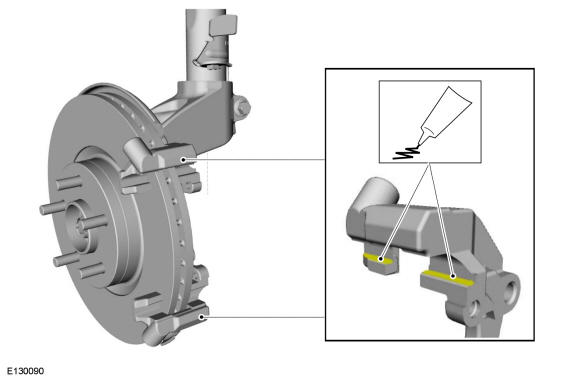

Apply the specified grease.
Material: Silicone Brake Caliper Grease and Dielectric Compound / XG-3-A (ESE-M1C171-A)

GFD48263

Courtesy of FORD MOTOR COMPANY

3.

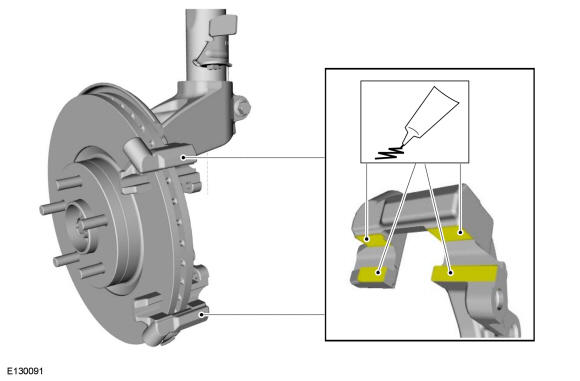

Apply the specified grease.
Material: Silicone Brake Caliper Grease and Dielectric Compound / XG-3-A (ESE-M1C171-A)

GFD48264

Courtesy of FORD MOTOR COMPANY

4.

Bleed the brake system. Refer to: Component Bleeding .
