Repair procedures: Replacement

WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front bumper cover.
(Refer to "FRONT BUMPER COVER ")

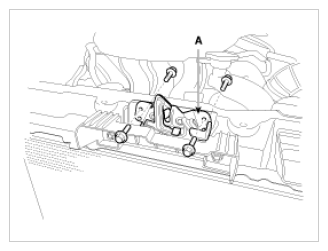

Remove the hood latch (A) mounting bolts.
Tightening torque:

7.8 ~ 11.8 N.m (0.8 ~ 1.2 kgf.m, 5.8 ~ 8.7 lb-ft)

Fig 1: Identifying Hood Latch Mounting Bolts
Courtesy of HYUNDAI MOTOR AMERICA

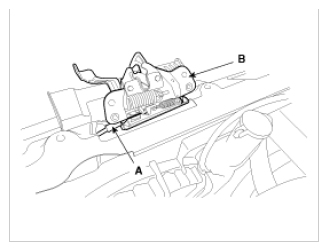

Disconnect the hood latch cable (A) and remove the hood latch (B).

Fig 2: Identifying Hood Latch And Cable
Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
Information
- Make sure the hood latch cable is connected properly.
- Make sure the hood locks/unlocks and opens/closes properly.
- Adjust the latch alignment.
