Repair procedures: Disassembly

WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.

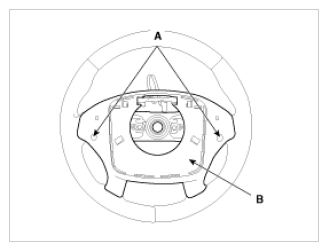

Loosen the screw (A-2ea) and then remove the lower cover (B) from the steering wheel body.

Fig 1: Identifying Lower Cover From Steering Wheel Body And Screw
Courtesy of HYUNDAI MOTOR AMERICA

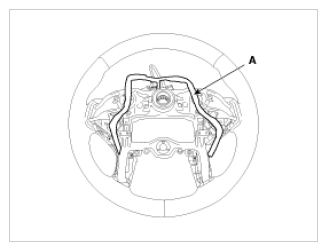

Remove the wiring (A).

Fig 2: Identifying Wiring
Courtesy of HYUNDAI MOTOR AMERICA

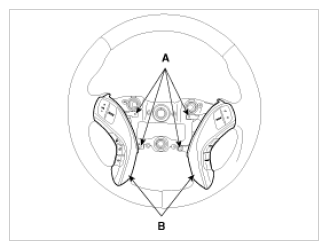

Loosen the screw (A-4ea) and then remote control switch assembly (B) from the steering wheel body.

Fig 3: Identifying Remote Control Switch Assembly Screw From Steering Wheel Body
Courtesy of HYUNDAI MOTOR AMERICA
Installation is the reverse of the removal.
