Repair Procedures: Inspection

WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.
Remove the crash pad lower panel.
(Refer to "CRASH PAD LOWER PANEL ")
Remove the crash pad lower switch (A).

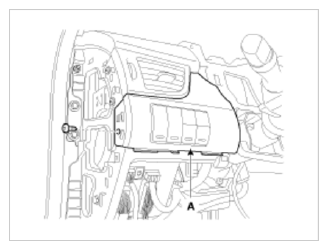

Fig 1: Identifying Crash Pad Lower Switch
Courtesy of HYUNDAI MOTOR AMERICA
Remove the rheostat switch connector (A).

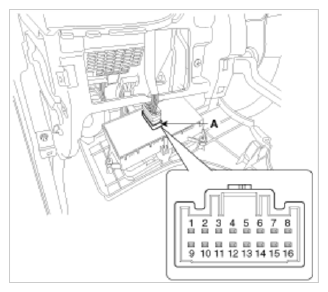

Fig 2: Identifying Rheostat Switch Connector
Courtesy of HYUNDAI MOTOR AMERICA
Operate the rheostat switch and check for continuity between terminals.

Fig 3: Rheostat Switch Continuity Reference Chart
Courtesy of HYUNDAI MOTOR AMERICA
