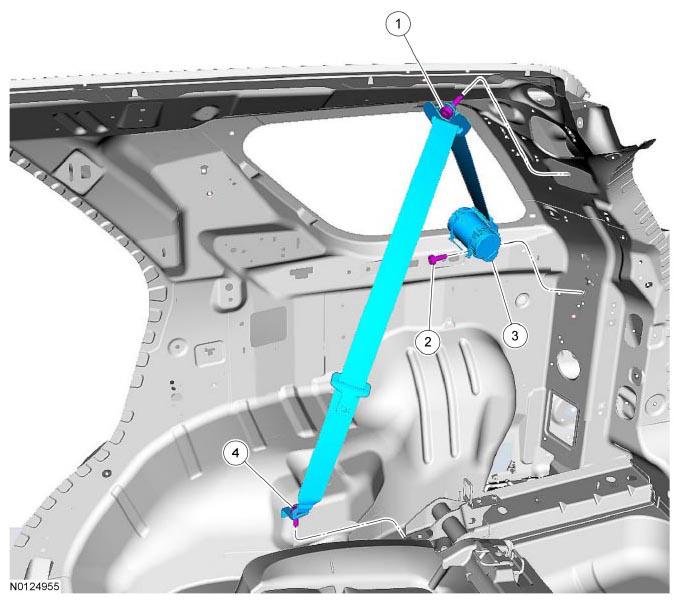

Exploded View
WARNING: This page is about a different car, the 2014 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Service Part Number | Description | Tool Number | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | - | D-ring bolt (part of 611B68 RH 611B69 LH) | - | - | 40 Nm (30 lb-ft) |
| 2 | W504775 | Safety belt retractor bolt | - | - | 40 Nm (30 lb-ft) |
| 3 | 611B68 RH 611B69 LH | Safety belt retractor | - | - | - |
| 4 | - | Safety belt anchor bolt (part of 611B68 RH 611B69 LH) | - | - | 40 Nm (30 lb-ft) |
