Receiver Drier Cartridge: Removal
WARNING: This page is about a different car, the 2013 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Before beginning any service procedure in this information, refer to Safety Warnings in
SERVICE INFORMATION
. Failure to follow this instruction may result in serious personal injury.
NOTE:
Removal steps in this procedure may contain installation details.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to JACKING & LIFTING .
- Recover the refrigerant. Refer to AIR CONDITIONING (A/C) SYSTEM RECOVERY, EVACUATION AND CHARGING .
- Remove the front bumper cover. Refer to BUMPERS .

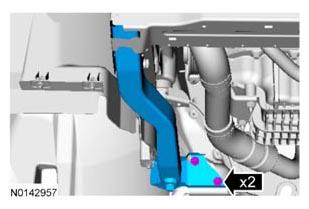

- Both sides

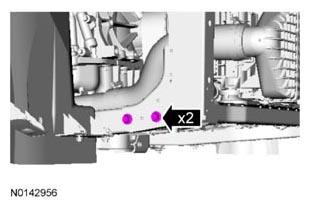

- Both sides
