Overhead Console: Removal

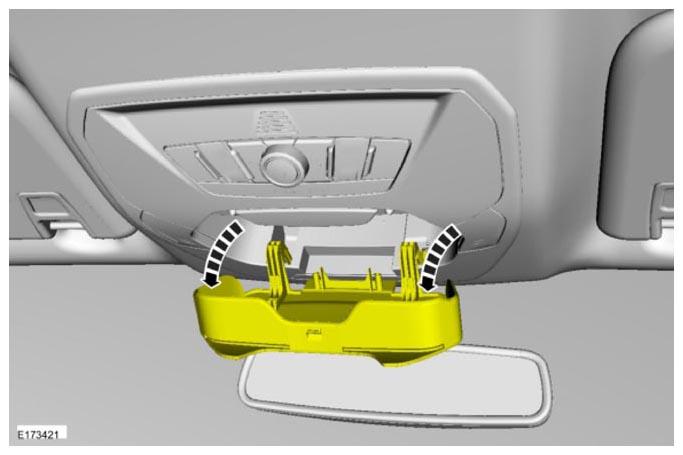

Open the sun glasses bin.
NOTE: Sun glasses bin shown removed for clarity.

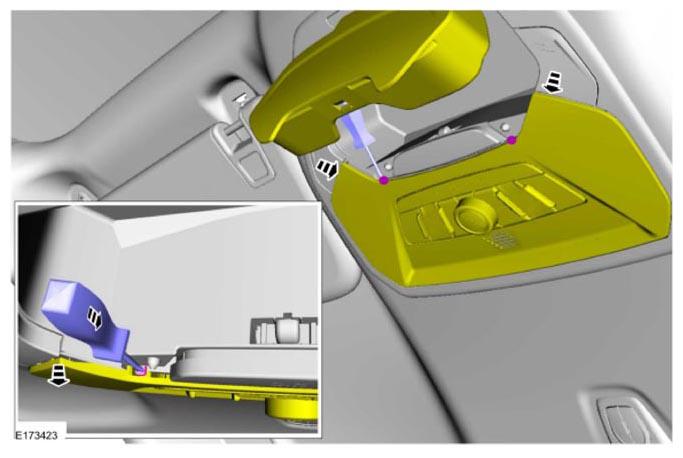

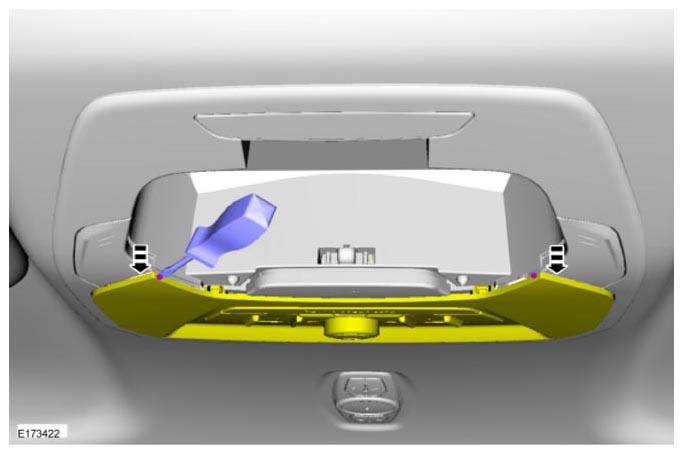

Using a suitable tool pry both corners of the switch bezel down.
Using a suitable tool push inward on both sides on the switch panel inner tabs to release the switch panel.

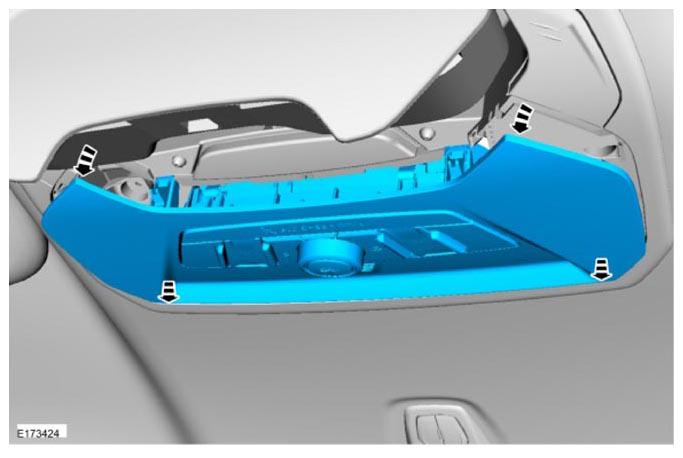

Remove the switch panel.

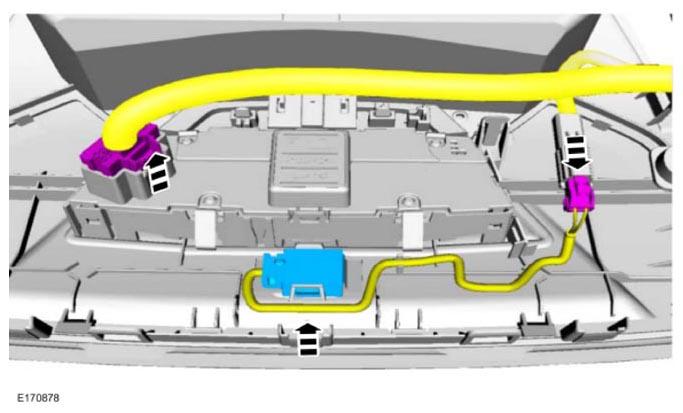

Disconnect the electrical connectors.

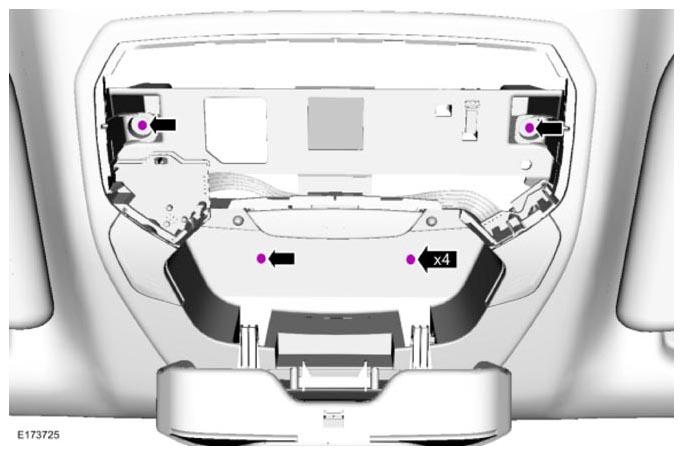

If equipped, remove the 4 torx screws.

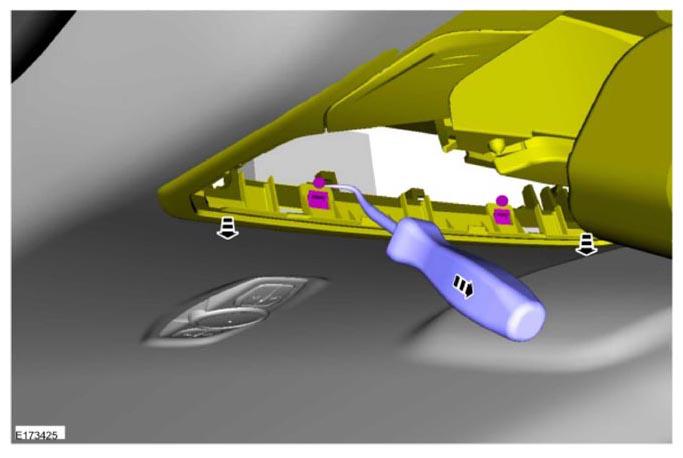

Using a suitable tool release the snap tabs facing the rear of vehicle on both sides.

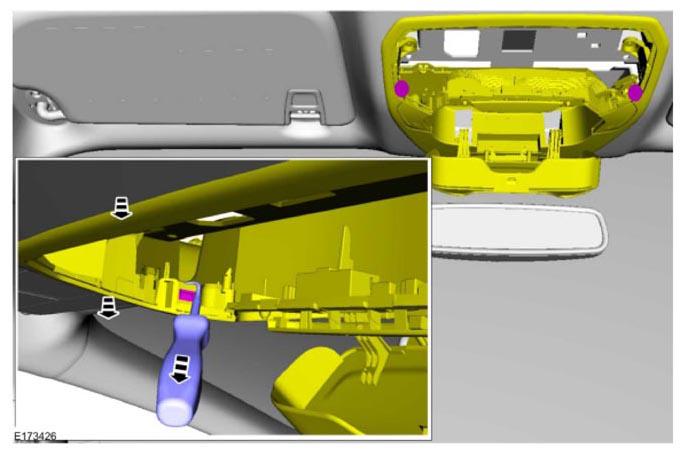

Using a suitable tool release the side snap tabs on both sides.

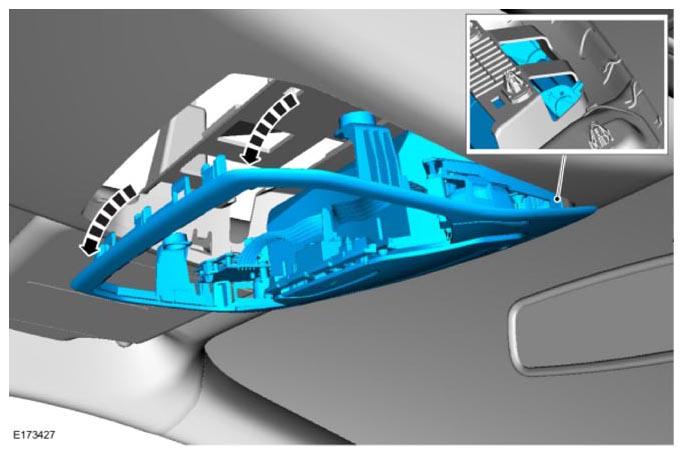

Rotate the overhead console assembly downward and pull rearward to release the clip tabs and remove the overhead console assembly.
