OEM Ground Distribution: Grounds: G400

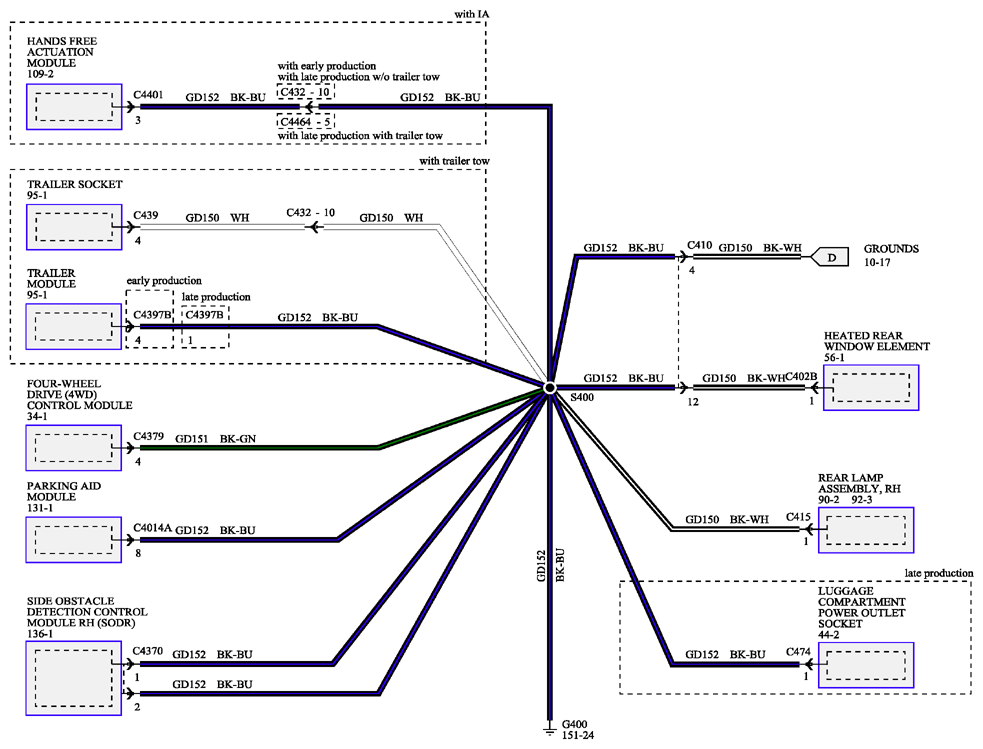

Fig 1: Grounds - Wiring Diagram - G400 (1 Of 2)

G09222568

Courtesy of FORD MOTOR CO.

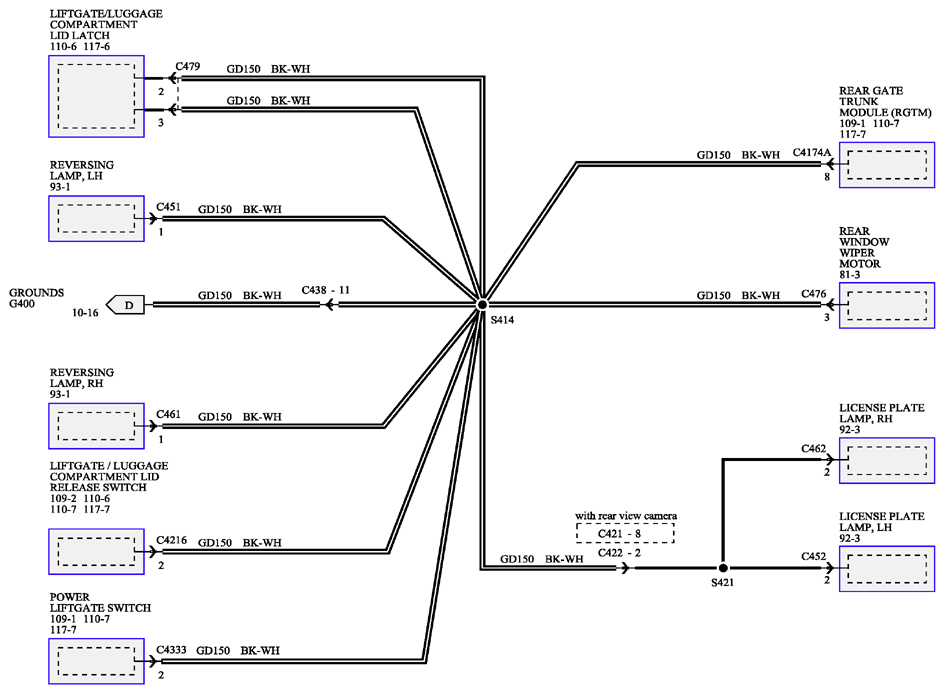

Fig 2: Grounds - Wiring Diagram - G400 (2 Of 2)

G09222569

Courtesy of FORD MOTOR CO.
