OEM Ground Distribution: Grounds: G205

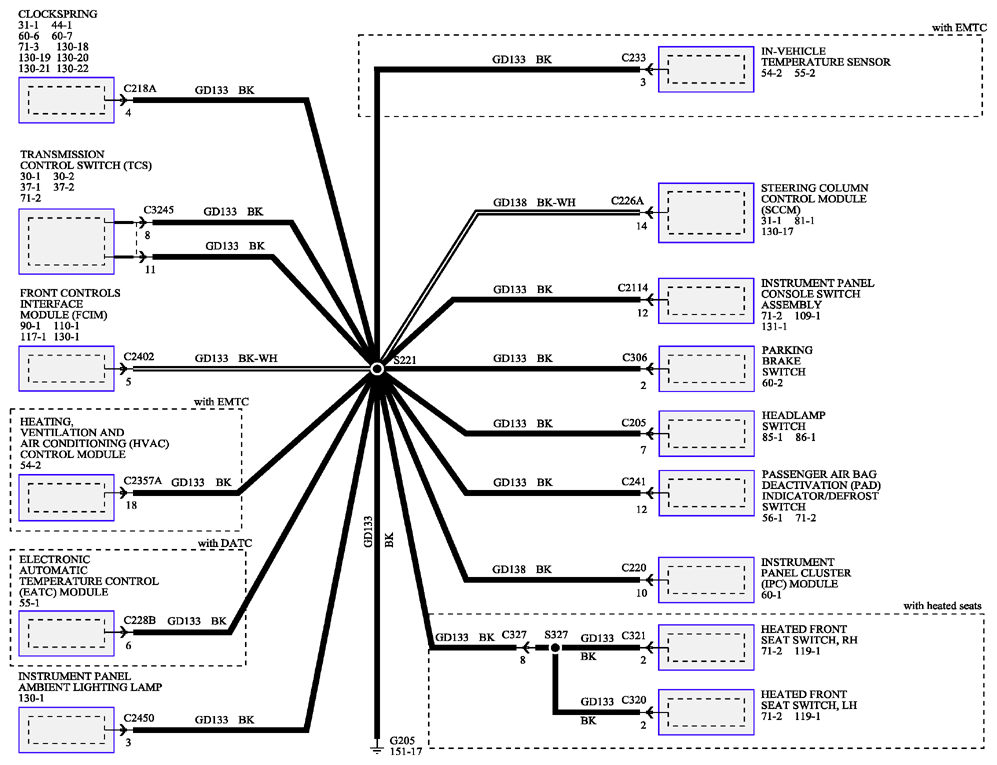

Fig 1: Grounds - Wiring Diagram - G205

G09222564

Courtesy of FORD MOTOR CO.
