OEM Ground Distribution: Grounds: G203

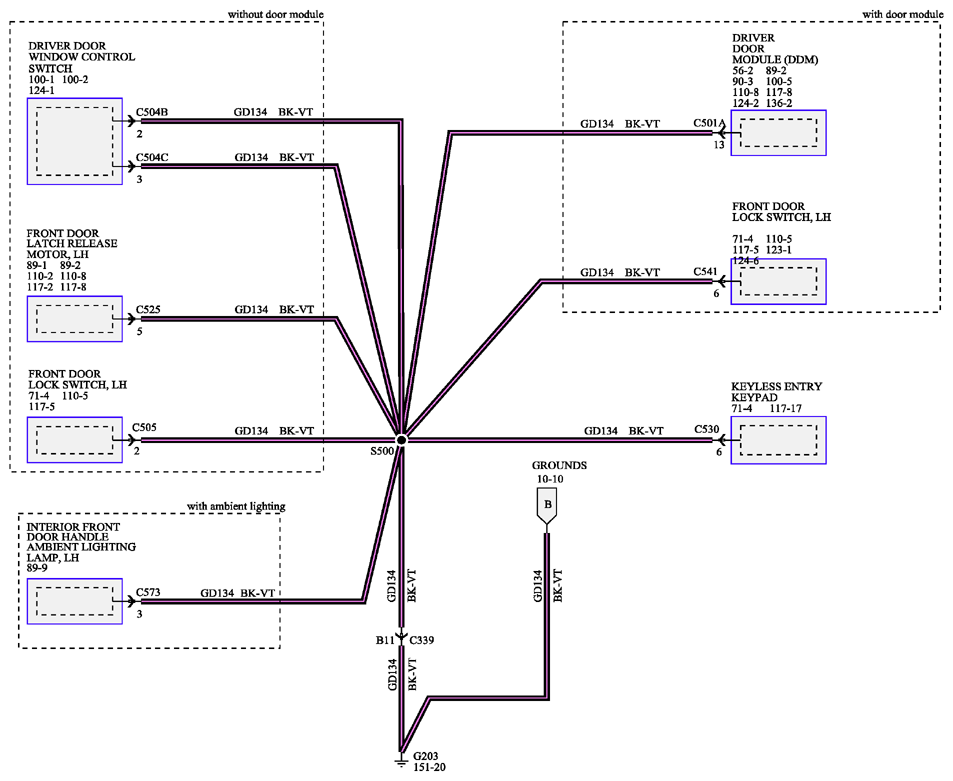

Fig 1: Grounds - Wiring Diagram - G203 (1 Of 2)

G09222561

Courtesy of FORD MOTOR CO.

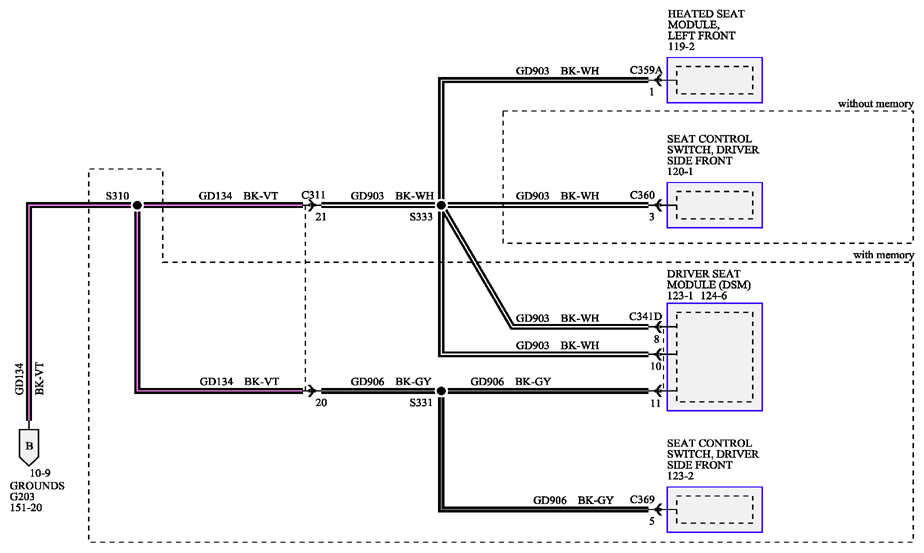

Fig 2: Grounds - Wiring Diagram - G203 (2 Of 2)

G09222562

Courtesy of FORD MOTOR CO.
