OEM Ground Distribution: Grounds: G107

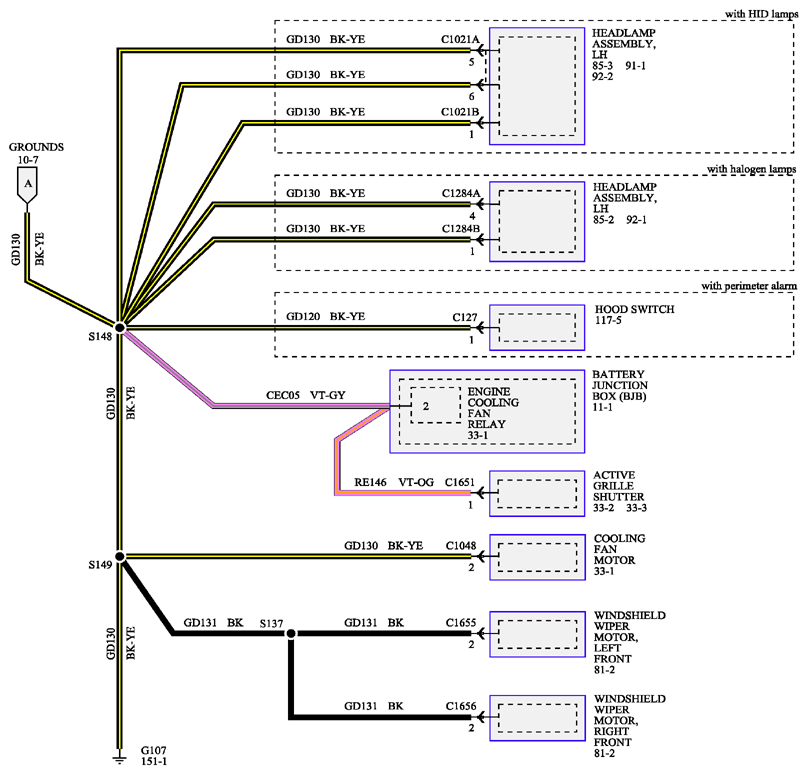

Fig 1: Grounds - Wiring Diagram - G107 (1 Of 2)

G09222558

Courtesy of FORD MOTOR CO.

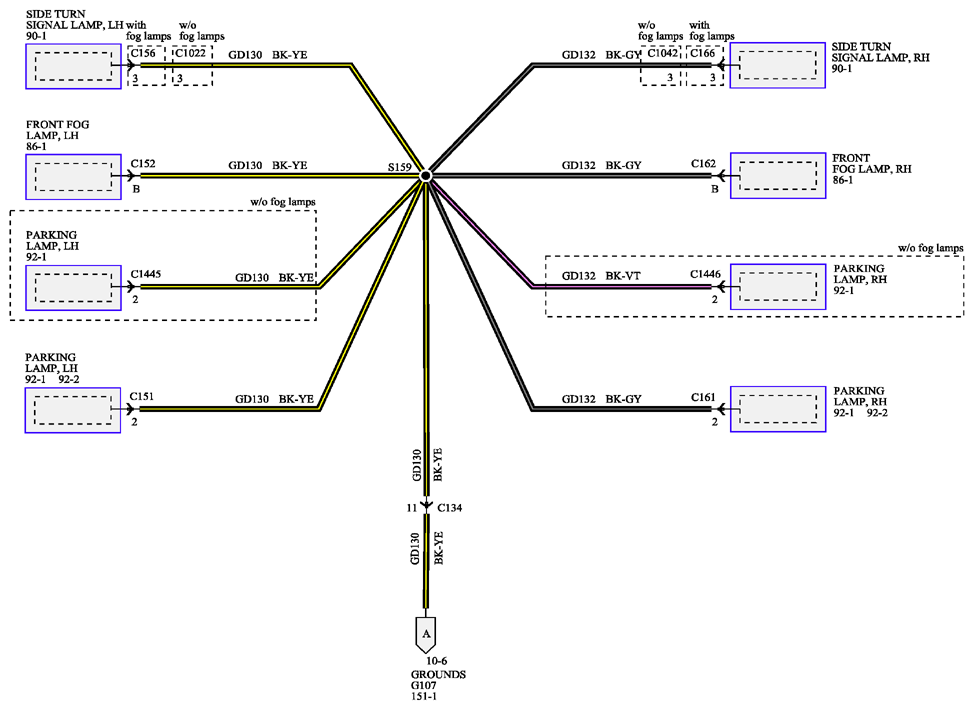

Fig 2: Grounds - Wiring Diagram - G107 (2 Of 2)

G09222559

Courtesy of FORD MOTOR CO.
