OEM Ground Distribution: Grounds: G103

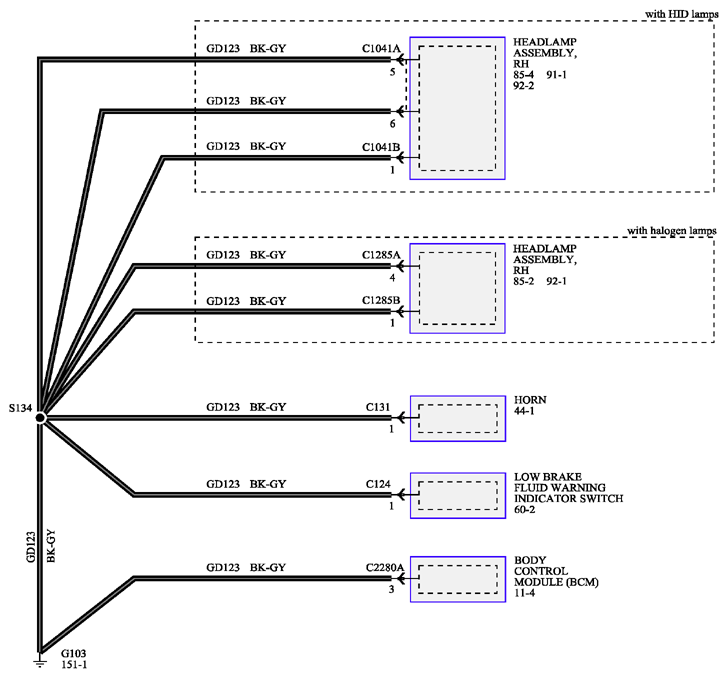

Fig 1: Grounds - Wiring Diagram - G103

G09222557

Courtesy of FORD MOTOR CO.
