Electrical Short Inside The Harness

  1. Solder coated wire to ground
  2. Harness protective tape
  3. Intermittent short

    Solder coated wire pierced through the insulation of another circuit.

  4. Grounding foil

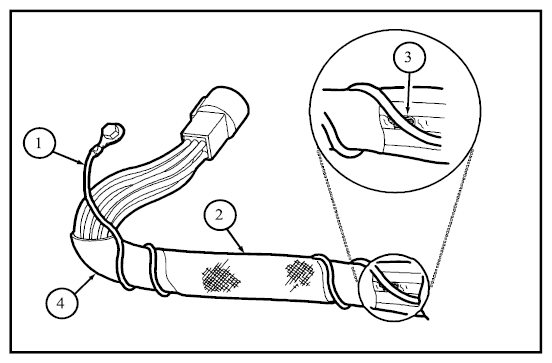

    Fig 1: Identifying Electrical Short Inside Harness
    G09222540Courtesy of FORD MOTOR CO.
