Broken Wire Strands In Harness

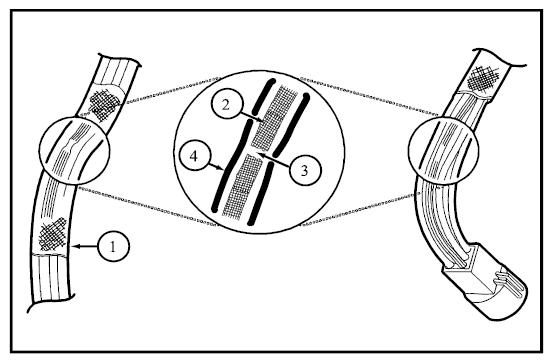

  1. Wiring harness tape
  2. Wiring strand
  3. Broken strands intermittent signal
  4. Circuit insulation
    Fig 1: Identifying Broken Wire Strands Harness
    G09222542Courtesy of FORD MOTOR CO.

Remove the tape and flex/feel each circuit for a reduction in diameter at break.
