Power Steering Control Module (PSCM) Connector End View (C1463A)

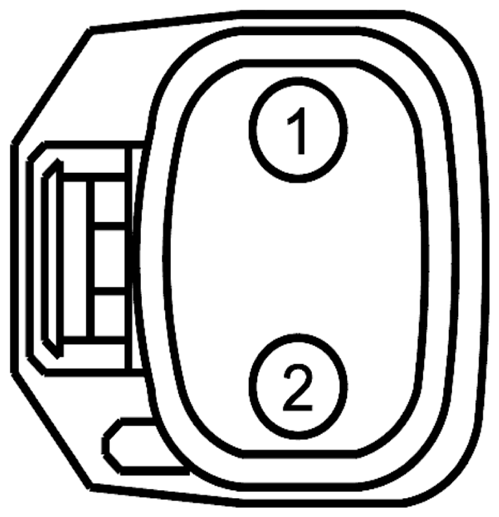

Fig 1: Identifying Power Steering Control Module Connector (C1463A)
G09223916Courtesy of FORD MOTOR CO.
Pin Circuit Gauge Circuit Function Qualifier
1 SBF01 (RD) 10 00 FUSE OR CIRCUIT BREAKER
2 GD120 (BK-GN) 10 00 GROUND - FENDER FRONT LEFT
