Master Window Control Switch - Without Door Modules: Schematic

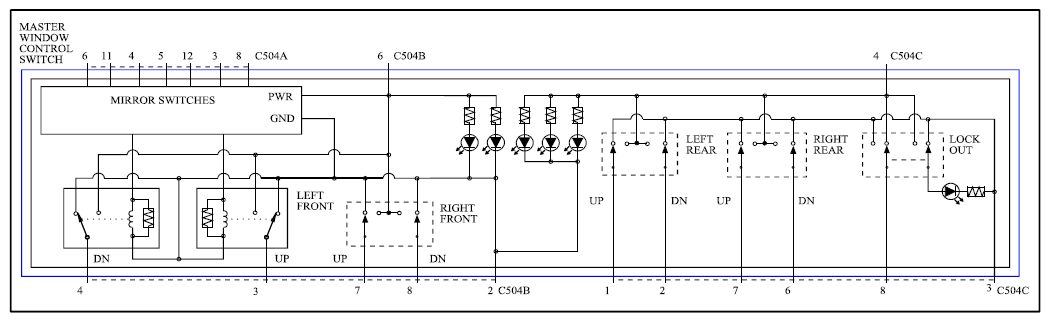

Fig 1: Master Window Control Switch - Without Door Modules Schematic

G09222849

Courtesy of FORD MOTOR CO.
