Liftgate Rear Control Switch Connector End View (C4333)

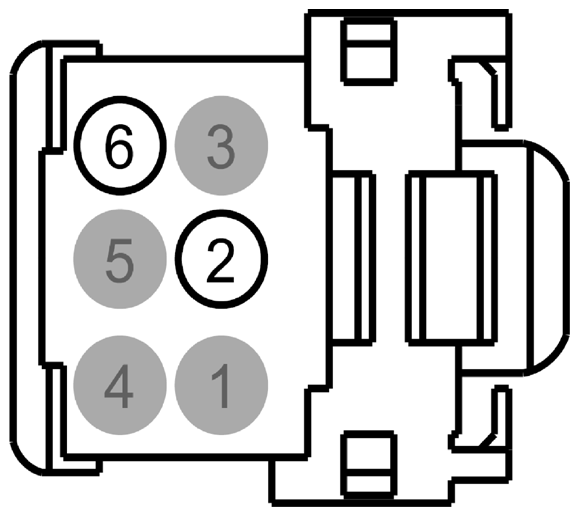

Fig 1: Identifying Liftgate Rear Control Switch Connector (C4333)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used
2	GD149 (BK-GY)	20	GROUND - PILLAR D LEFT
3	*	*	Not Used
4	*	*	Not Used
5	*	*	Not Used
6	CPR89 (BN-BU)	22	SWITCH - POWER LIFTGATE # OPEN/CLOSE #2 (REAR)
