In-Vehicle Temperature Sensor Connector End View (C233)

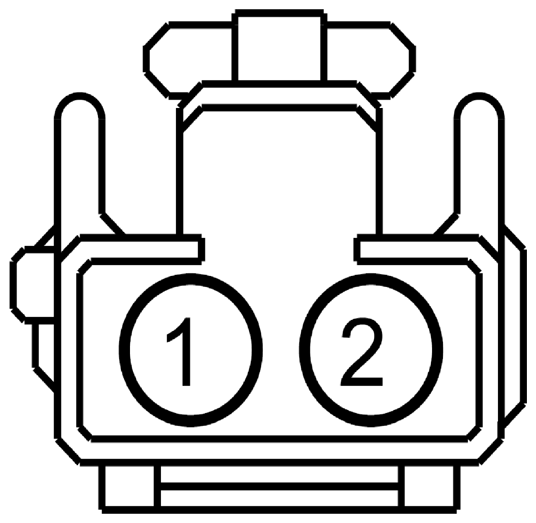

Fig 1: Identifying In-Vehicle Temperature Sensor Connector (C233)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	RH111 (GY-BU)	22	CTRL MOD. - GENERIC VREF RETURN
2	VH414 (GN-BU)	22	SENSOR - INCAR TEMP.
