CLOCKSPRING Connector End View (C218B)

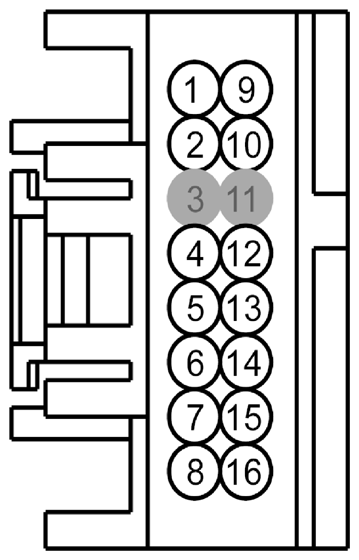

Fig 1: Identifying Clockspring Connector (C218B)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function
1	* (*)	*	SENSOR - HEATER STEERING WHEEL
2	* (*)	*	CTRL MOD. - HEATER STEERING WHEEL # SENSOR
3	*	*	Not Used
4	CRH02 (*)	*	SWITCH - HORN
5	CET42 (*)	*	SWITCH - TRANSMISSION SELECT SHIFT # DOWN (SST)
6	* (*)	*	SWITCH - A/D CHAN 3
7	* (*)	*	SWITCH - A/D CHAN 4
8	* (*)	*	SWITCH GROUND, LEFT
9	VLN04 (*)	*	CTRL MOD. - IP/SWITCH ILLUMINATION
10	RRH02 (*)	*	GROUND - CROSS CAR BEAM # 2ND POINT
11	*	*	Not Used
12	CET43 (*)	*	SWITCH - TRANSMISSION SELECT SHIFT # UP (SST)
13	RE407 (*)	*	CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (SIGRTN)
14	* (*)	*	SWITCH - A/D CHAN 1
15	* (*)	*	SWITCH - A/D CHAN 2
16	* (*)	*	SWITCH GROUND, RIGHT

Available Pigtail Kits

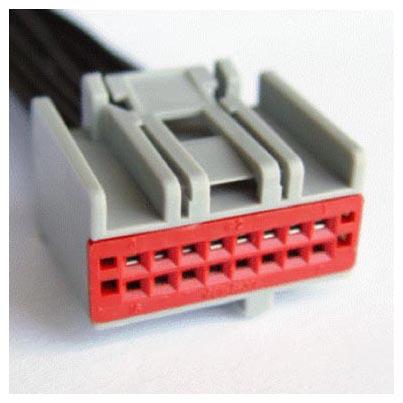

Pigtail Kit Part Number WPT-221	Service Part Number: 3U2Z-14S411-DPA Gauge: 18 Pin material: Tin Cavities: 16 Vehicle Uses Module - Reverse Park Aid (RPA) Radio Switch - Power Window - Driver Switch - Reverse Park Aid

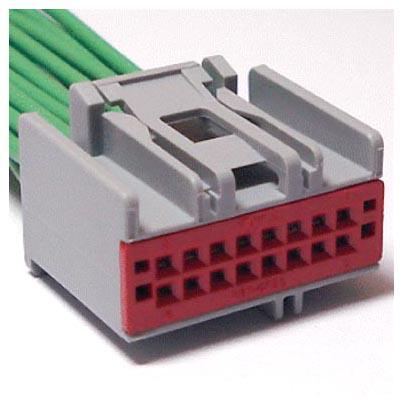

Pigtail Kit Part Number WPT-968	Service Part Number: 3U2Z-14S411-DPB Gauge: 18 Pin material: Silver Cavities: 16 Vehicle Uses Module - Reverse Park Aid (RPA) Radio Switch - Power Window - Driver Switch - Reverse Park Aid
