Master Window Adjust Switch - Edge: Schematic

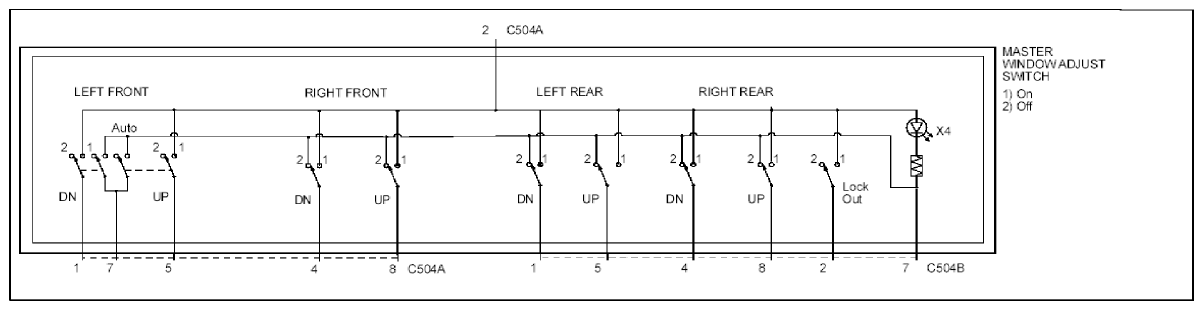

Fig 1: Master Window Adjust Switch Schematic (Edge)

G09219803

Courtesy of FORD MOTOR CO.
