Component Location Views

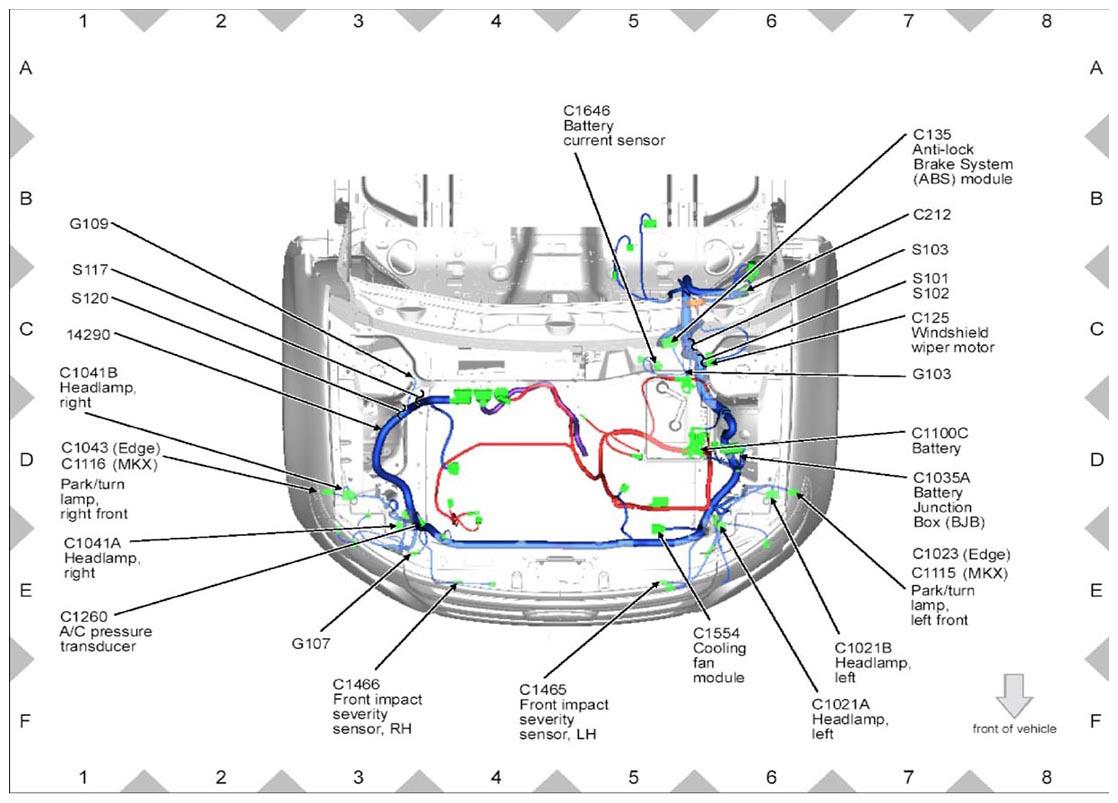

Fig 1: Engine Compartment Wiring Harness Connectors Location (1 Of 4)

G09219827

Courtesy of FORD MOTOR CO.

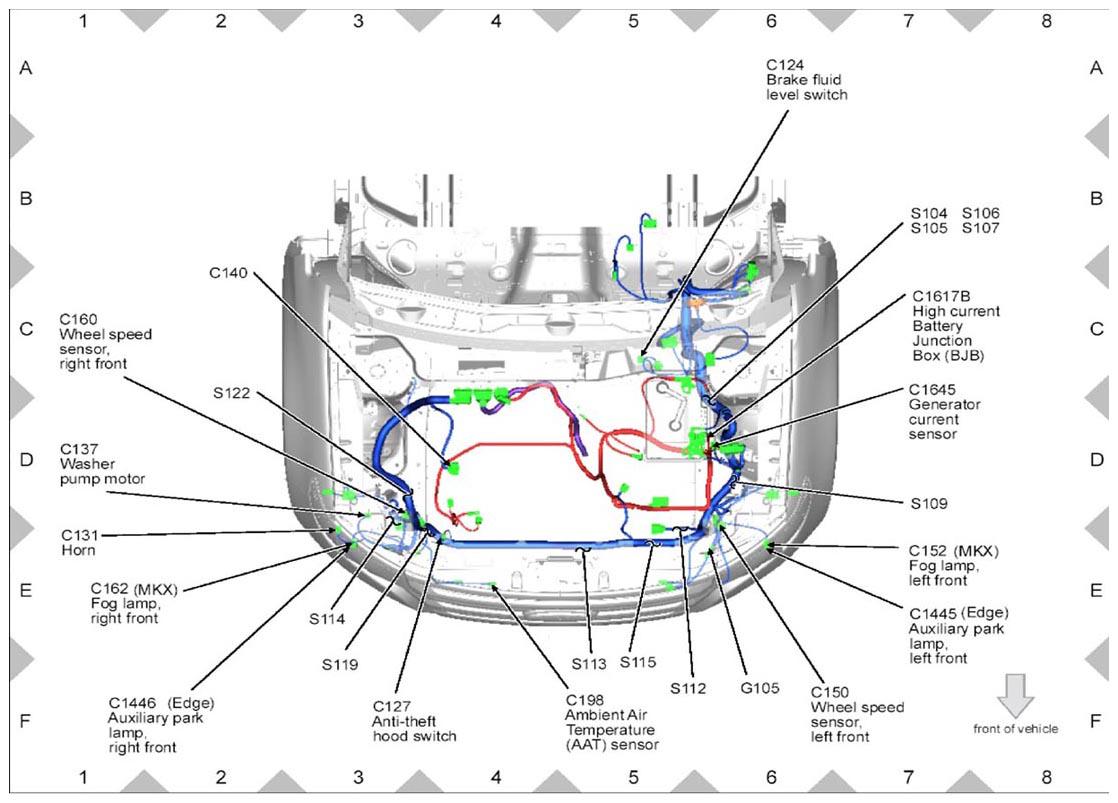

Fig 2: Engine Compartment Wiring Harness Connectors Location (2 Of 4)

G09219828

Courtesy of FORD MOTOR CO.

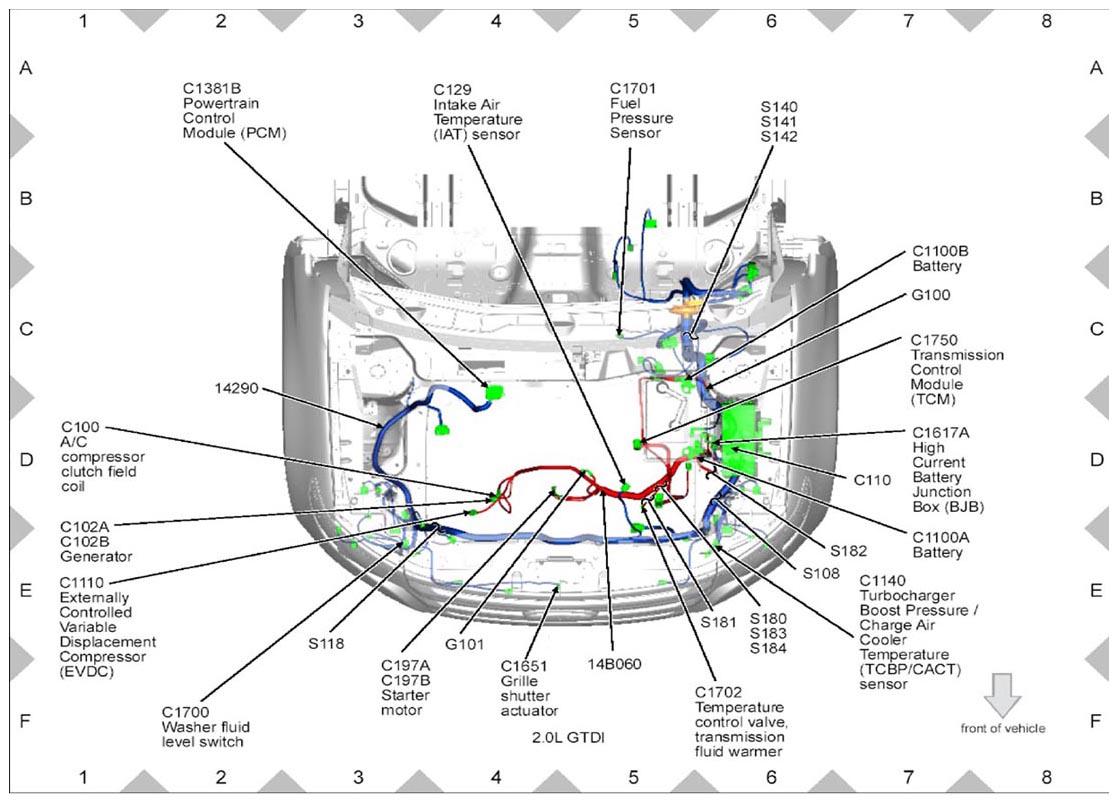

Fig 3: Engine Compartment Wiring Harness Connectors Location (3 Of 4)

G09219829

Courtesy of FORD MOTOR CO.

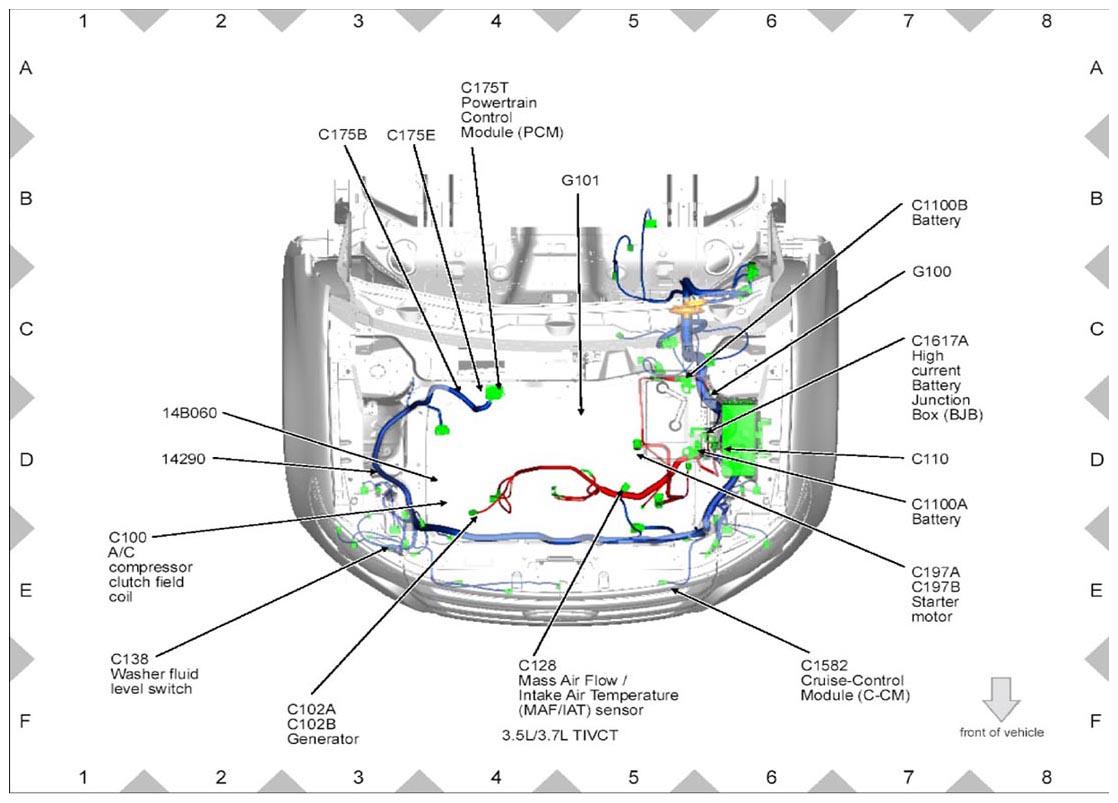

Fig 4: Engine Compartment Wiring Harness Connectors Location (4 Of 4)

G09219830

Courtesy of FORD MOTOR CO.

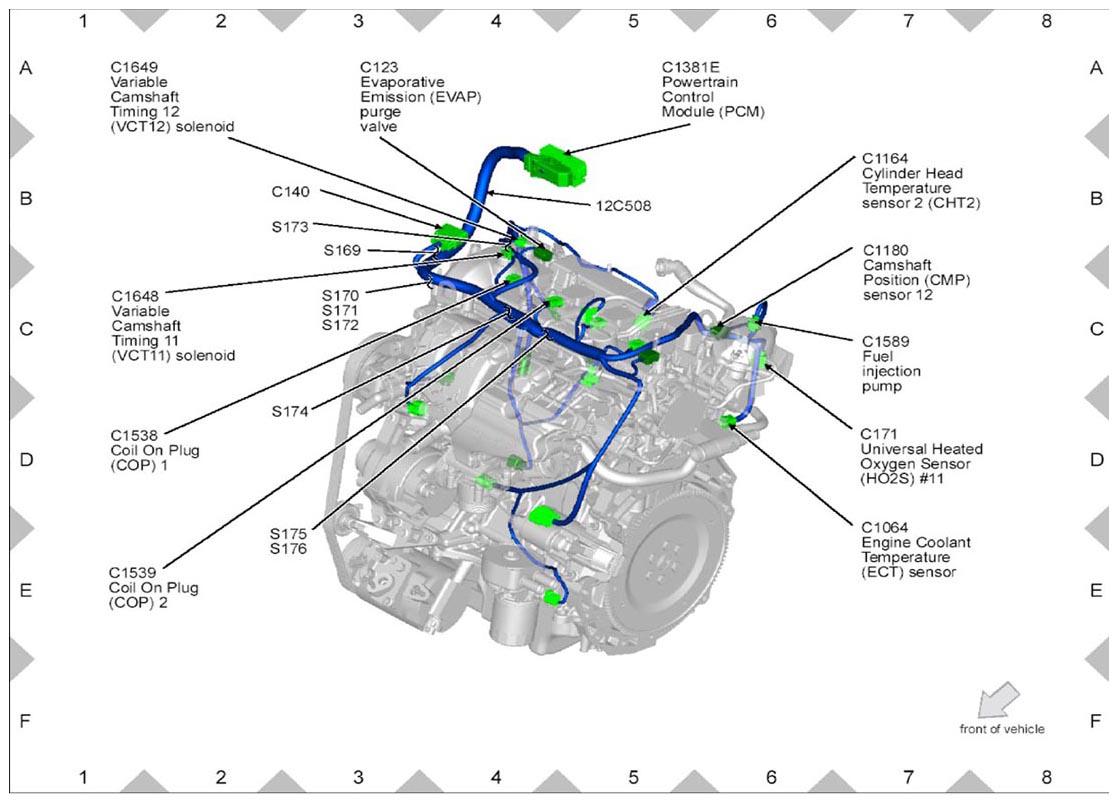

Fig 5: Engine Wiring Harness Connectors Location (1 Of 7)

G09219831

Courtesy of FORD MOTOR CO.

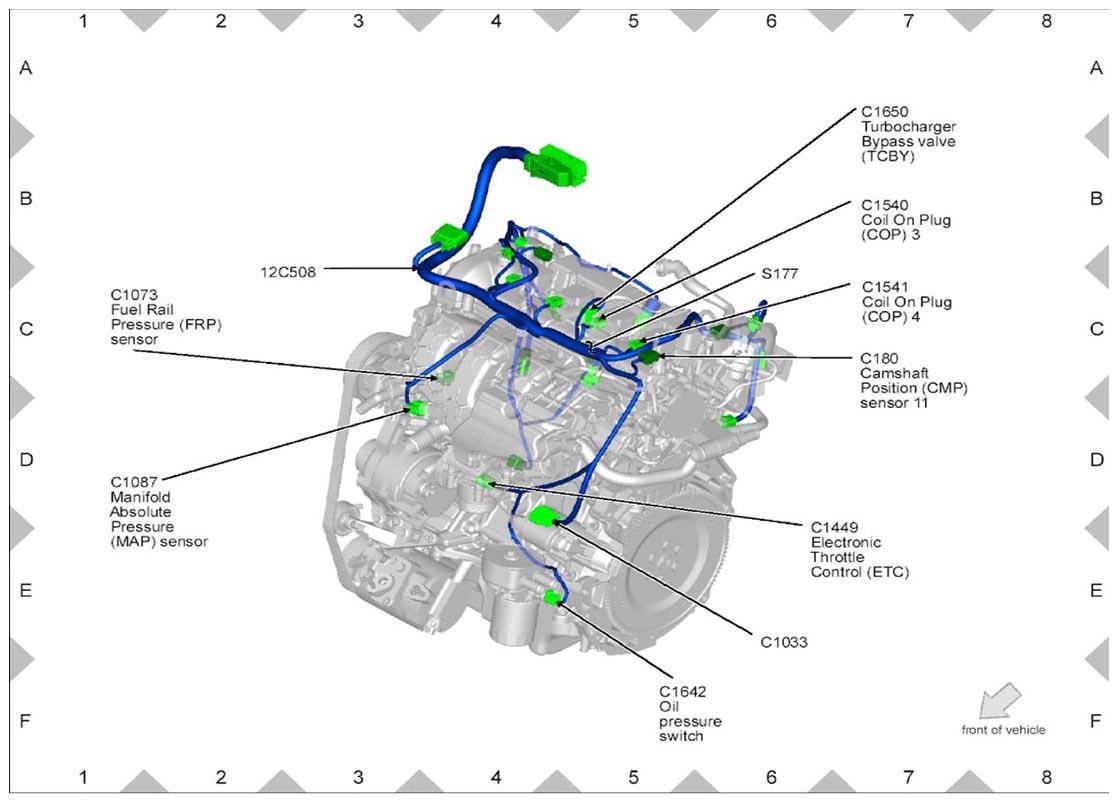

Fig 6: Engine Wiring Harness Connectors Location (2 Of 7)

G09219832

Courtesy of FORD MOTOR CO.

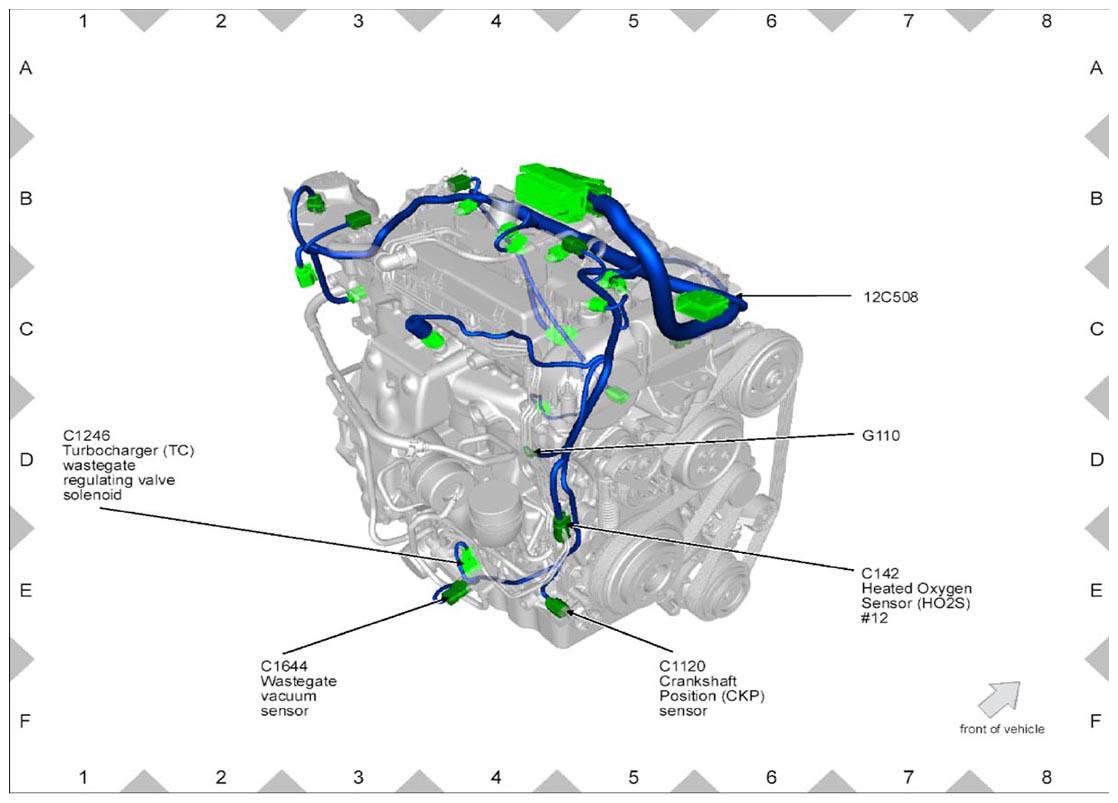

Fig 7: Engine Wiring Harness Connectors Location (3 Of 7)

G09219833

Courtesy of FORD MOTOR CO.

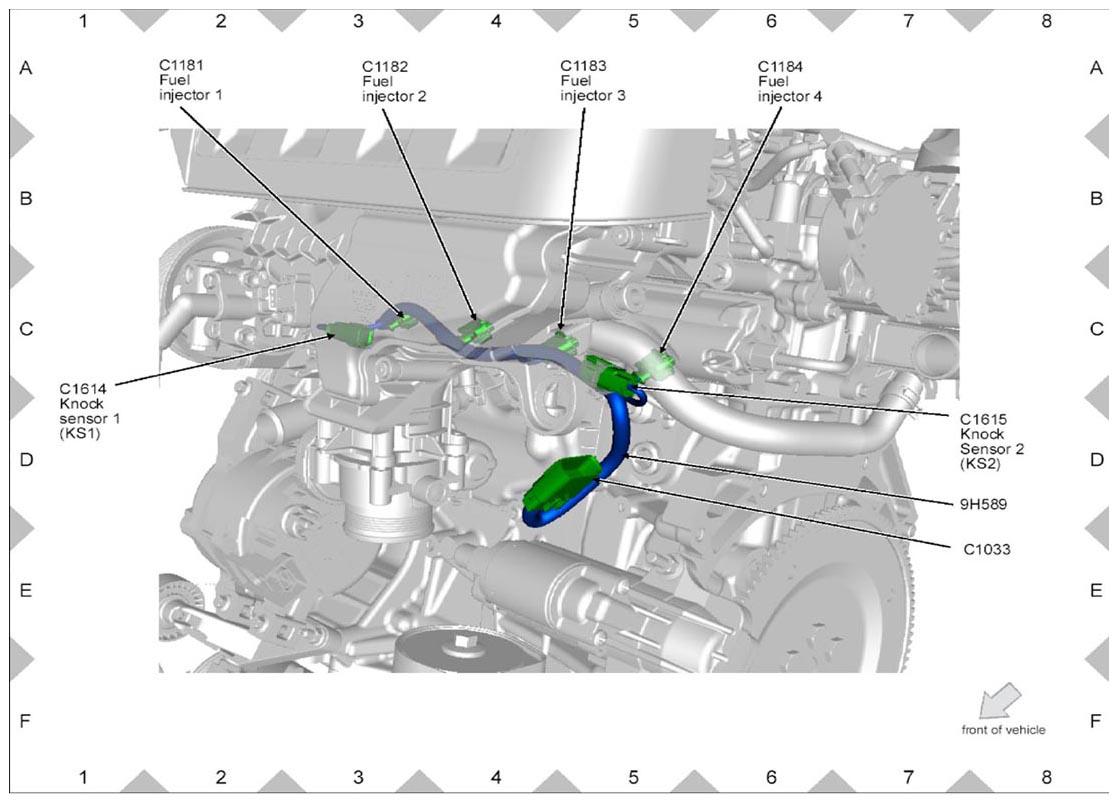

Fig 8: Engine Wiring Harness Connectors Location (4 Of 7)

G09219834

Courtesy of FORD MOTOR CO.

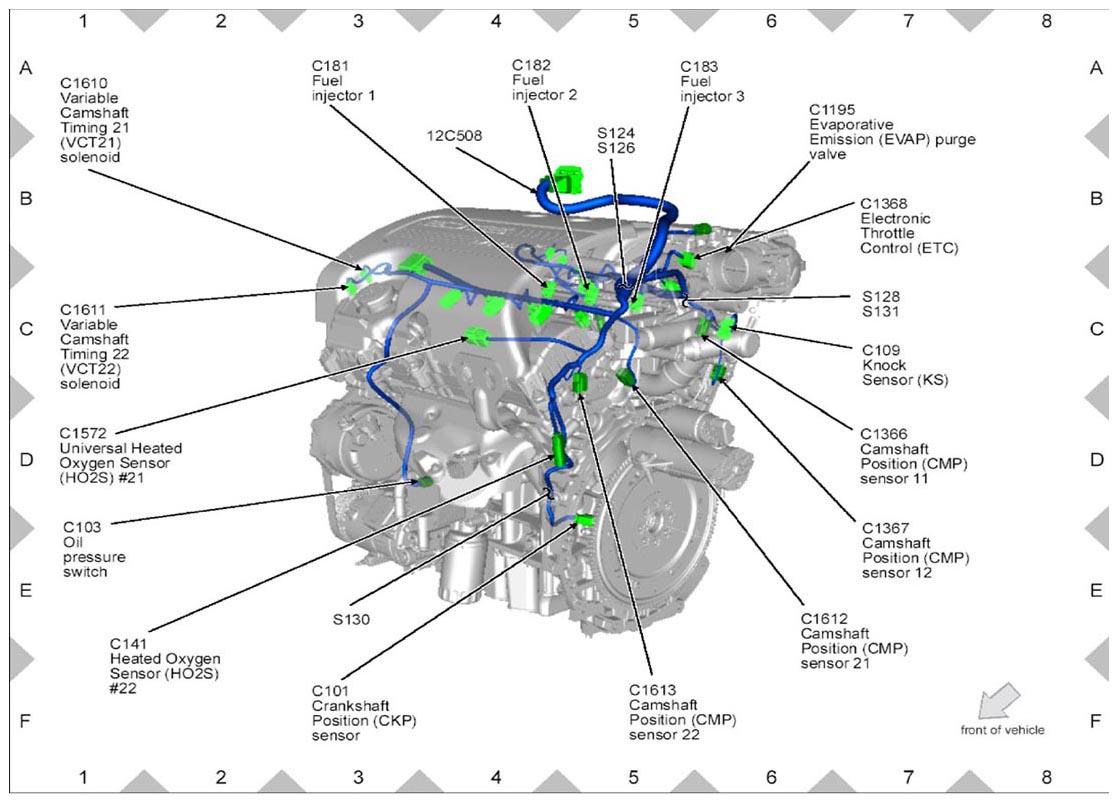

Fig 9: Engine Wiring Harness Connectors Location (5 Of 7)

G09219835

Courtesy of FORD MOTOR CO.

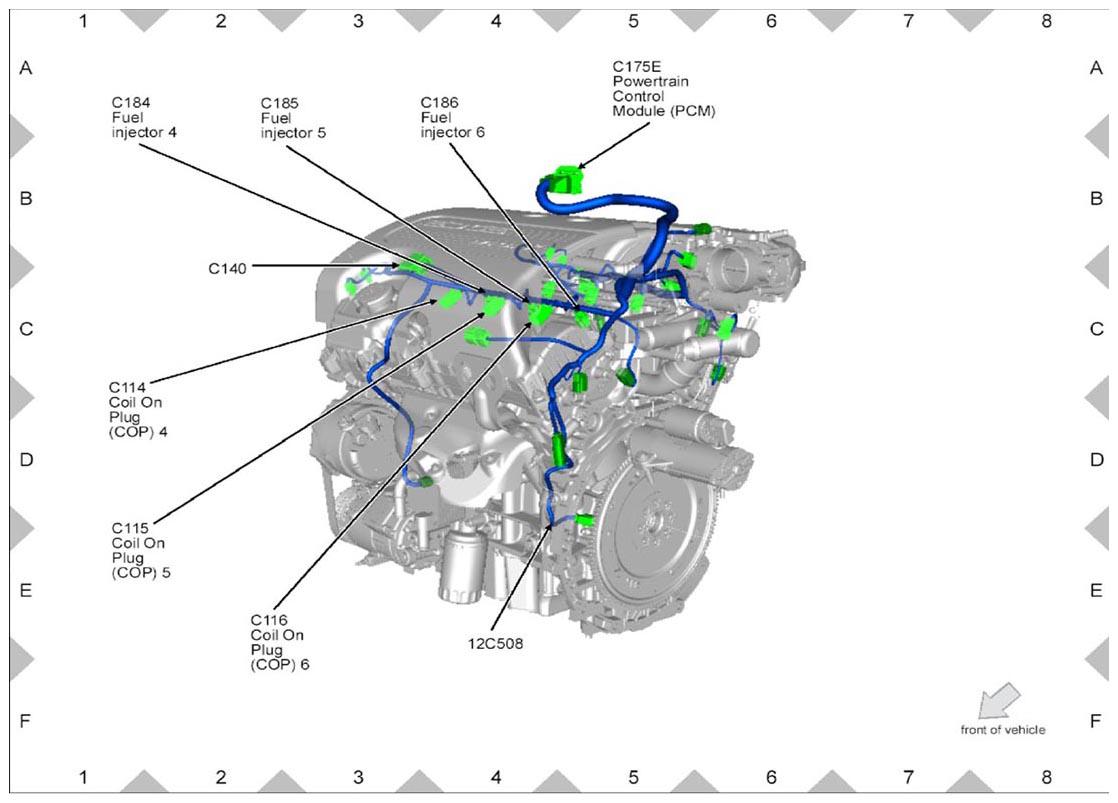

Fig 10: Engine Wiring Harness Connectors Location (6 Of 7)

G09219836

Courtesy of FORD MOTOR CO.

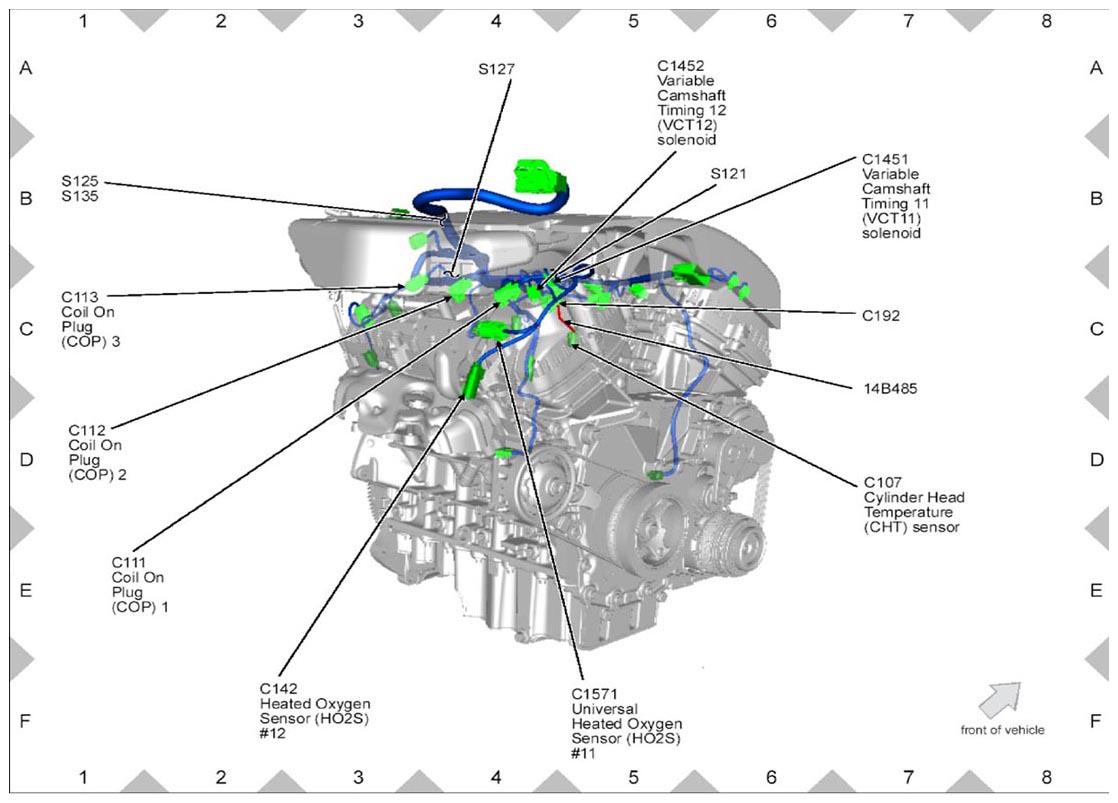

Fig 11: Engine Wiring Harness Connectors Location (7 Of 7)

G09219837

Courtesy of FORD MOTOR CO.

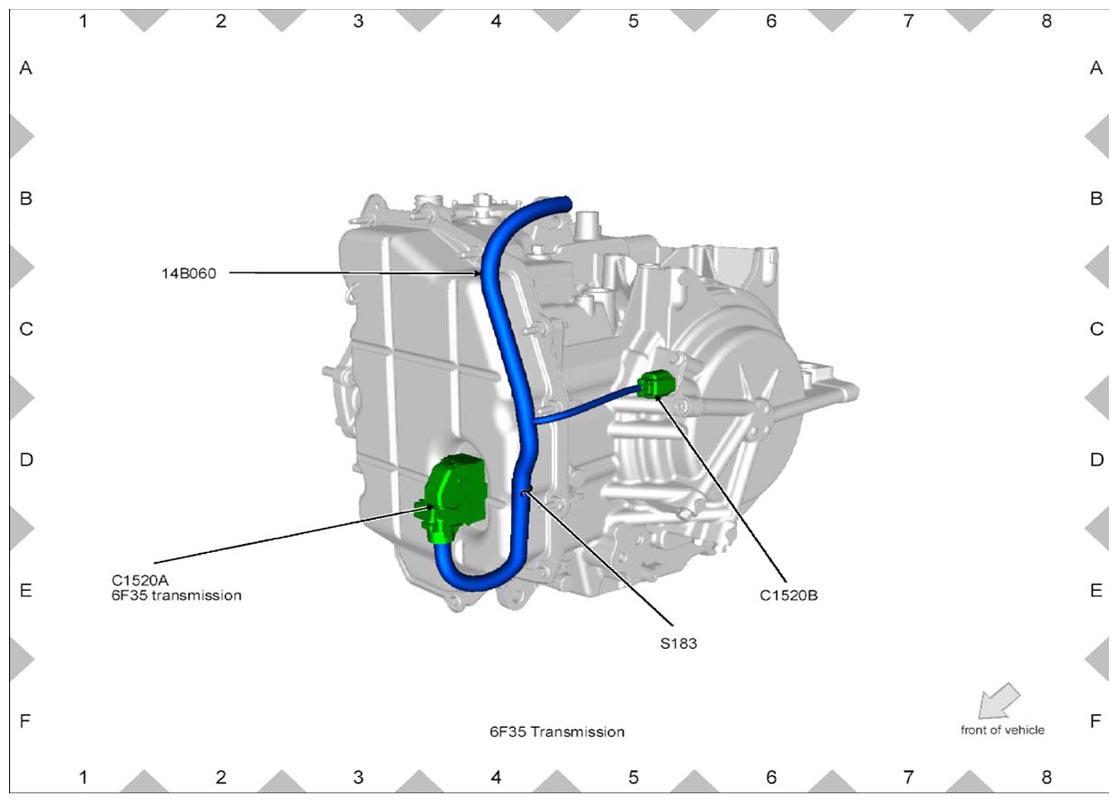

Fig 12: Transmission Wiring Harness Connectors Location (1 Of 2)

G09219838

Courtesy of FORD MOTOR CO.

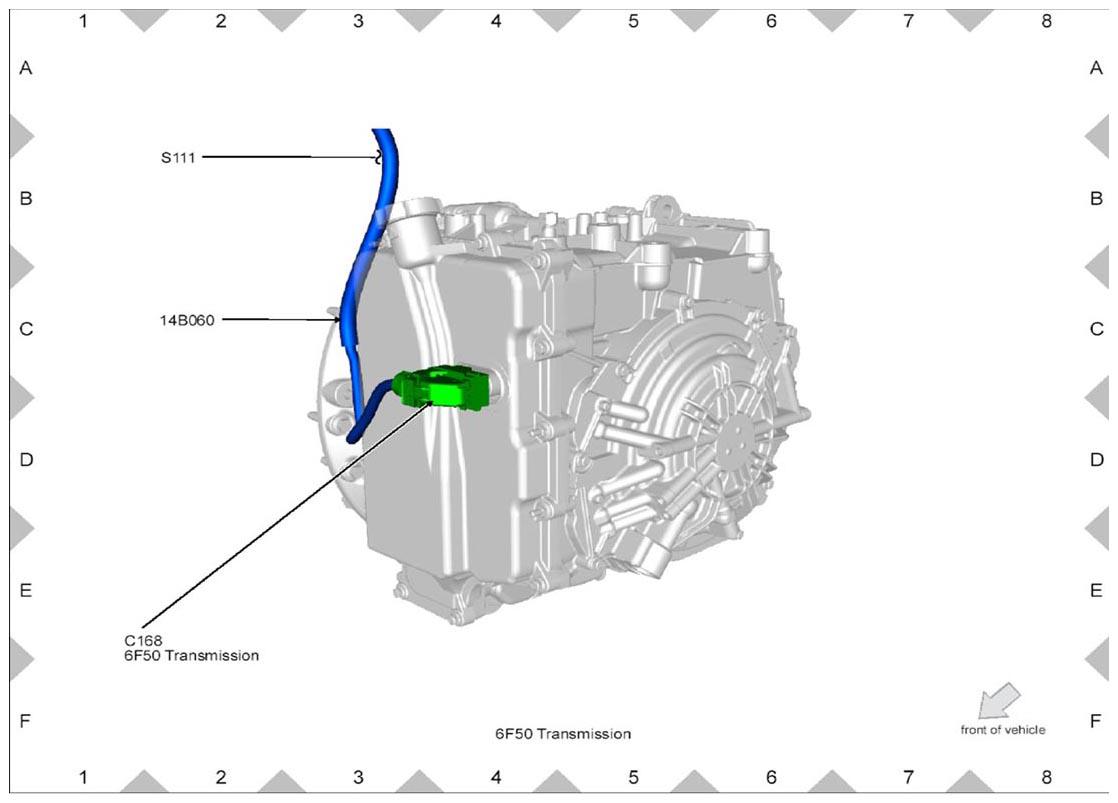

Fig 13: Transmission Wiring Harness Connectors Location (2 Of 2)

G09219839

Courtesy of FORD MOTOR CO.

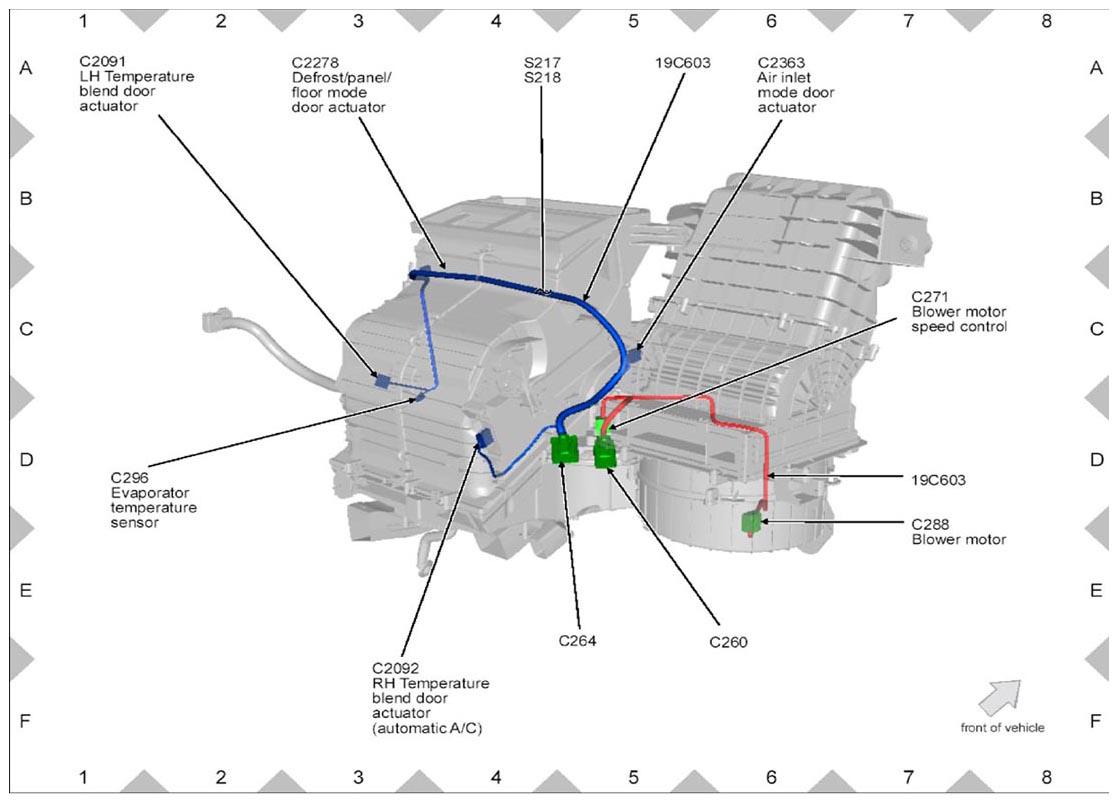

Fig 14: HVAC Housing Wiring Harness Connectors Location

G09219840

Courtesy of FORD MOTOR CO.

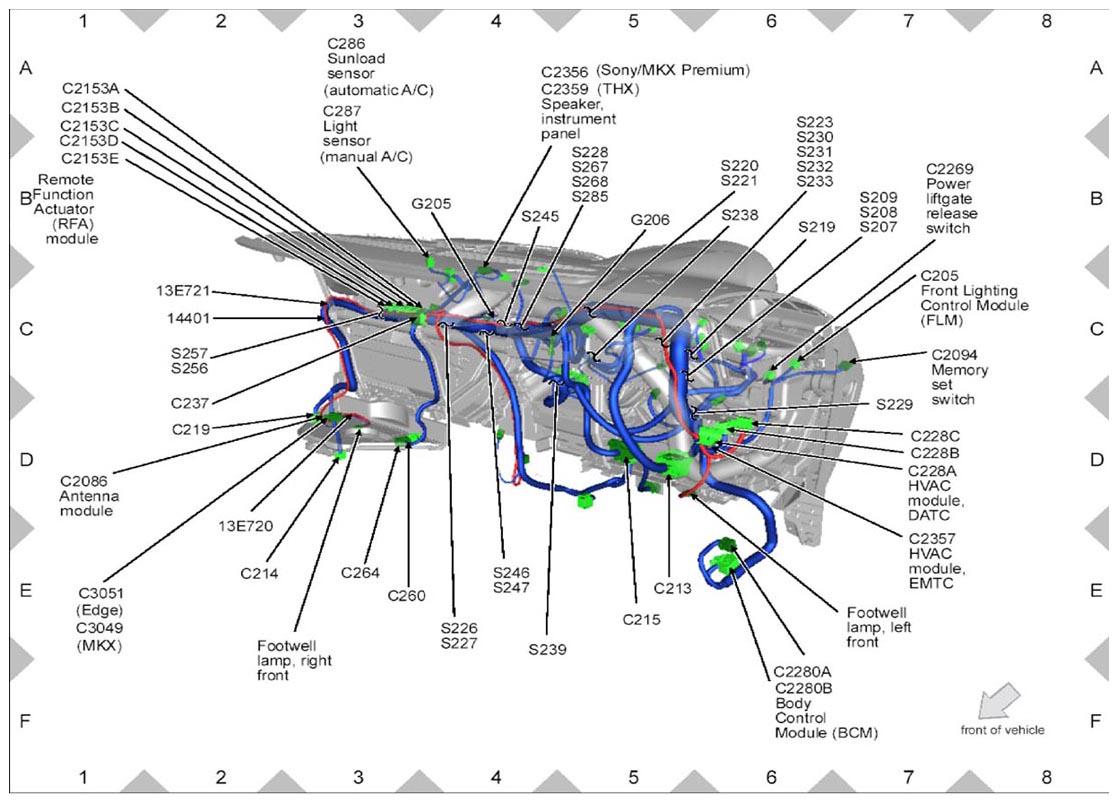

Fig 15: Dash Board Wiring Harness Connectors Location (1 Of 2)

G09219841

Courtesy of FORD MOTOR CO.

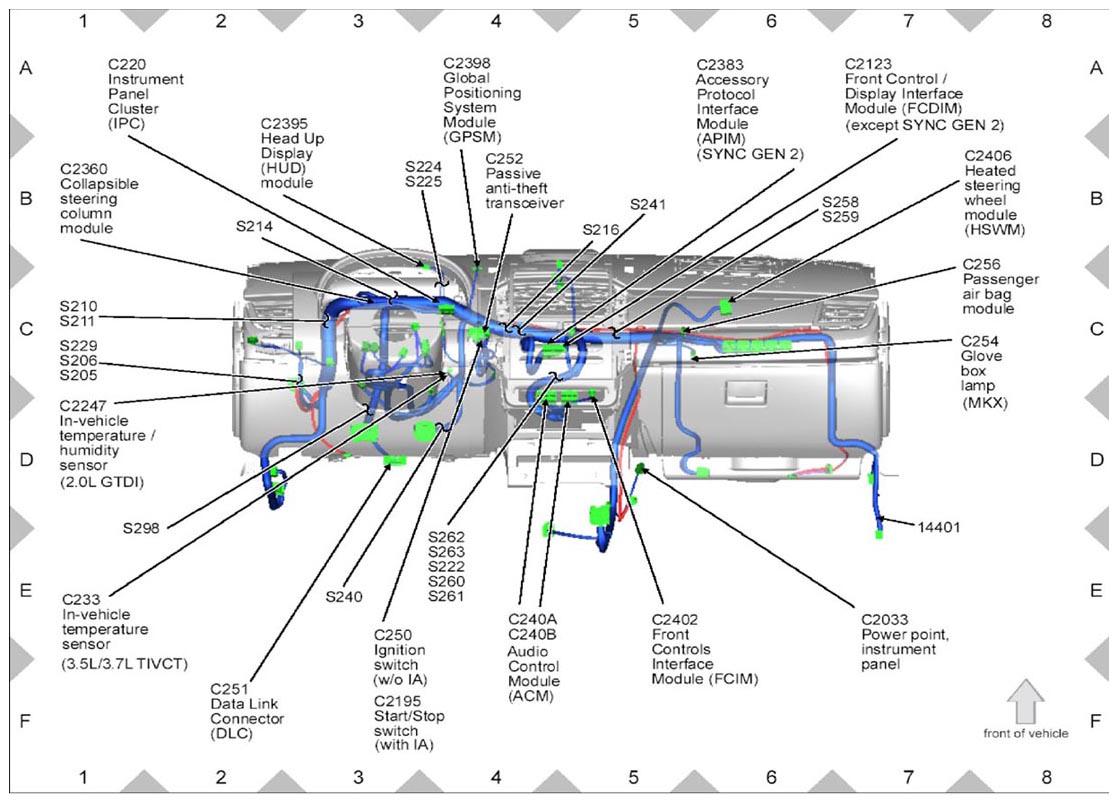

Fig 16: Dash Board Wiring Harness Connectors Location (2 Of 2)

G09219842

Courtesy of FORD MOTOR CO.

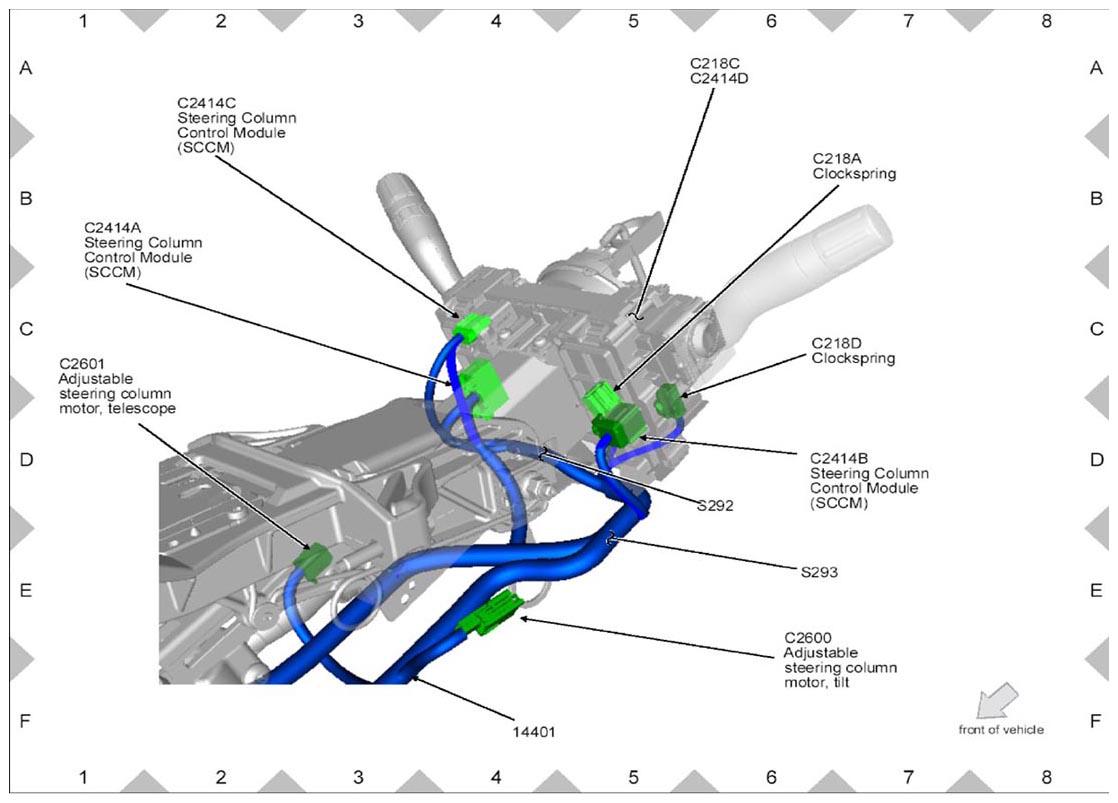

Fig 17: Steering Column Wiring Harness Connectors Location

G09219843

Courtesy of FORD MOTOR CO.

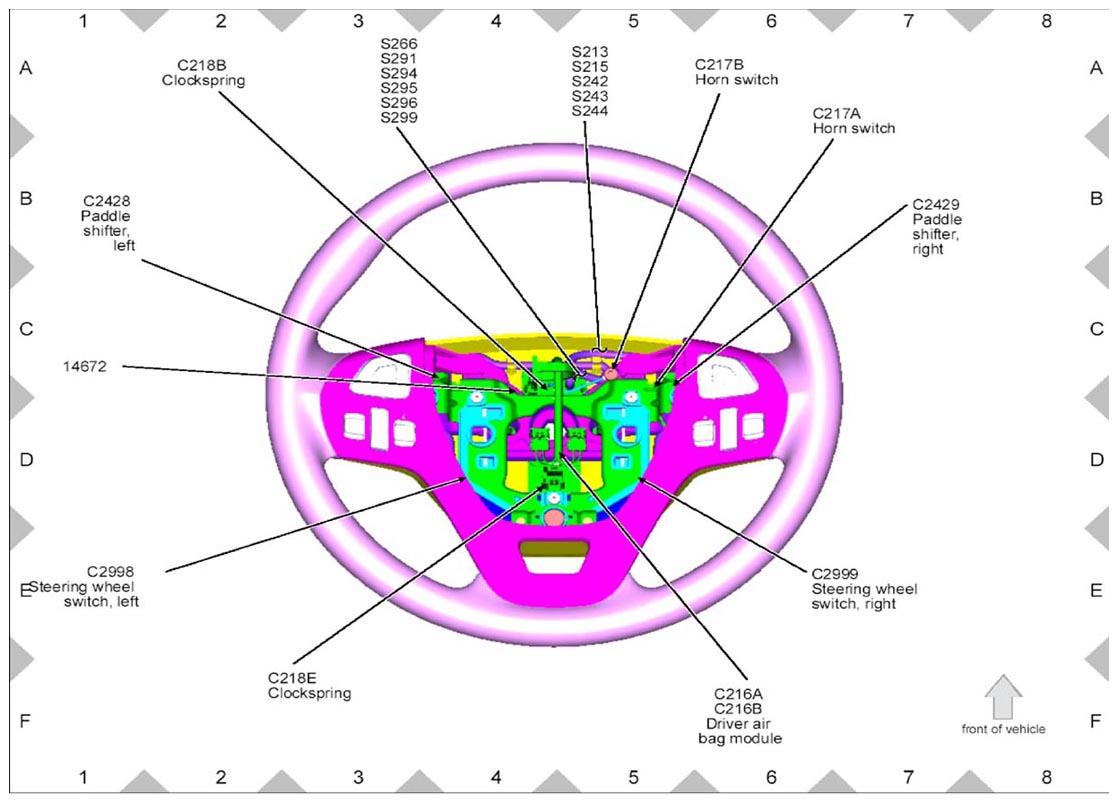

Fig 18: Steering Wheel Wiring Harness Connectors Location

G09219844

Courtesy of FORD MOTOR CO.

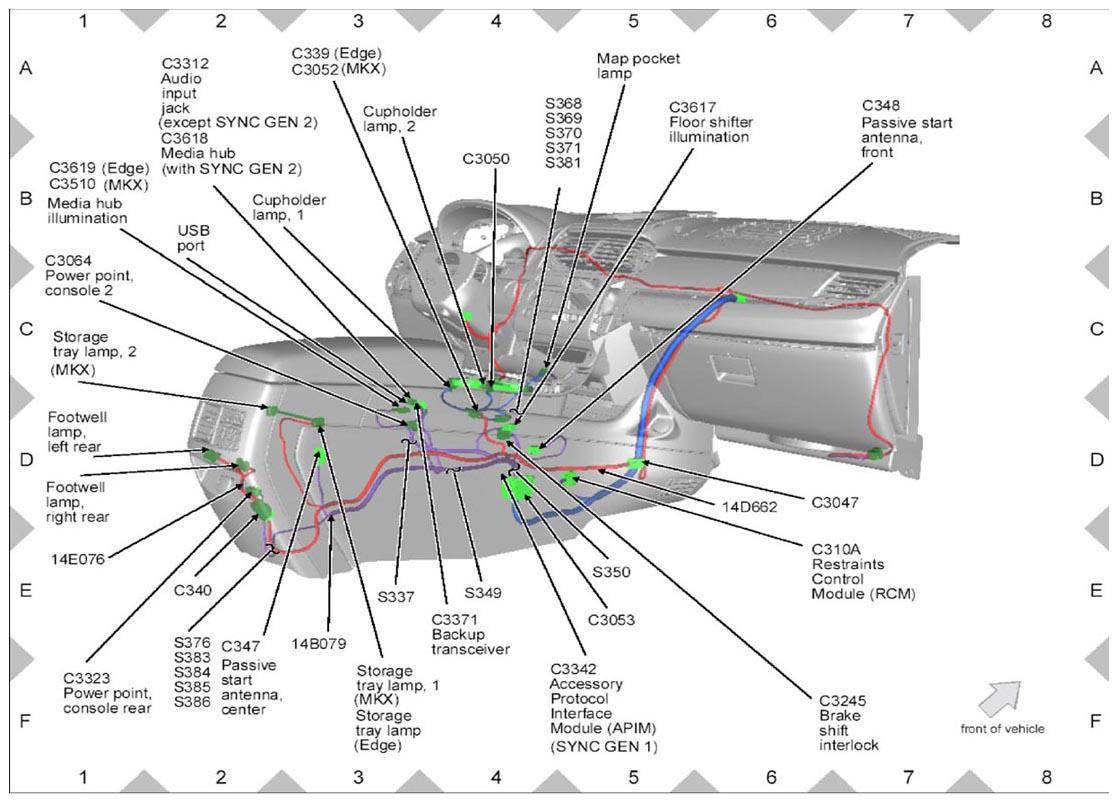

Fig 19: Center Console Wiring Harness Connectors Location

G09219845

Courtesy of FORD MOTOR CO.

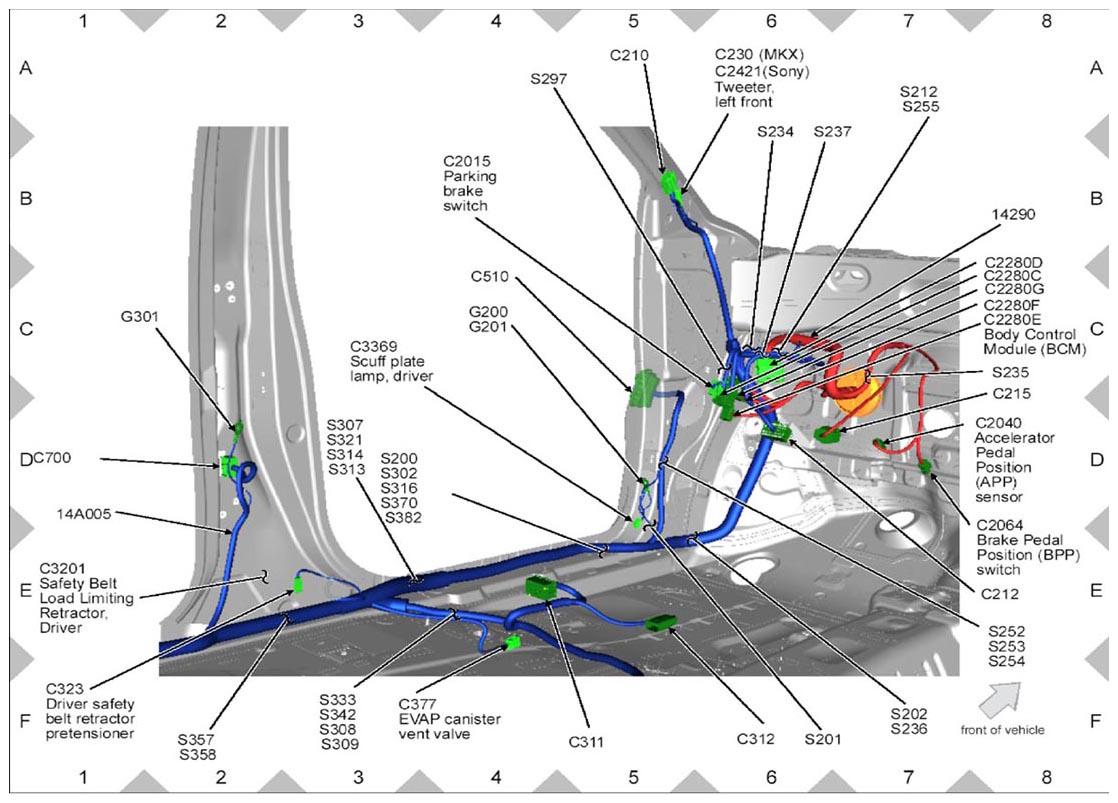

Fig 20: Front Compartment Wiring Harness Connectors Location (LH)

G09219846

Courtesy of FORD MOTOR CO.

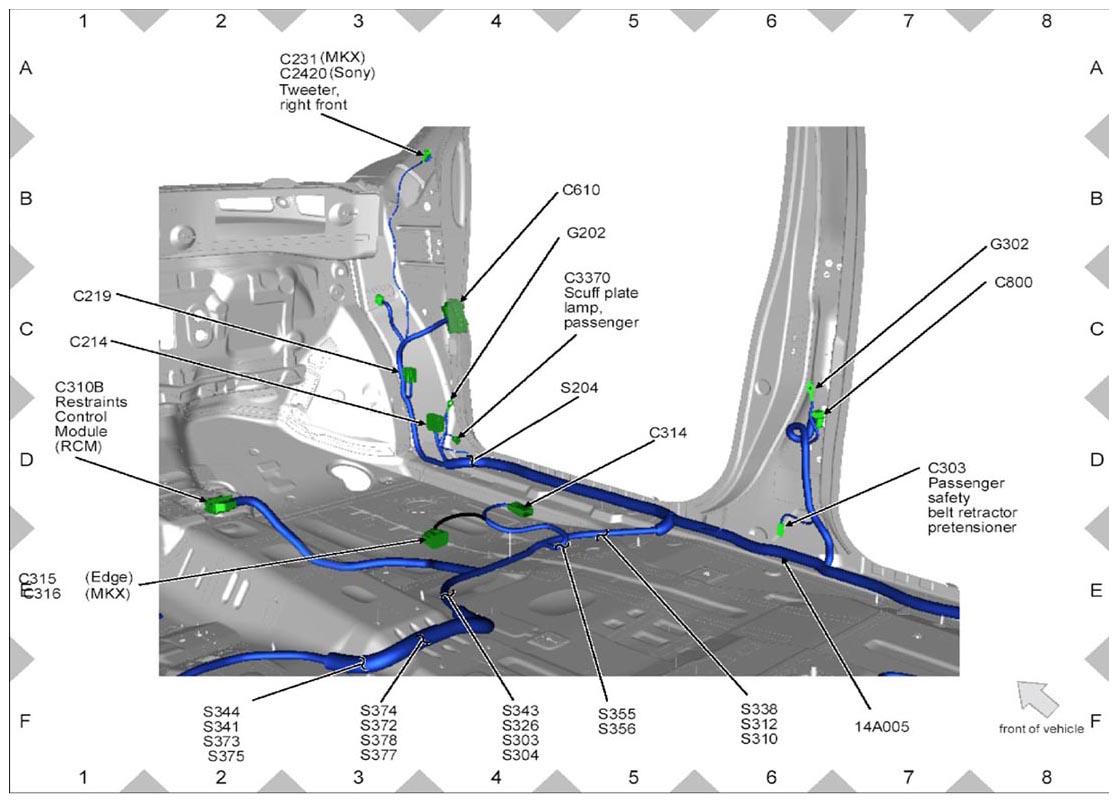

Fig 21: Front Compartment Wiring Harness Connectors Location (RH)

G09219847

Courtesy of FORD MOTOR CO.

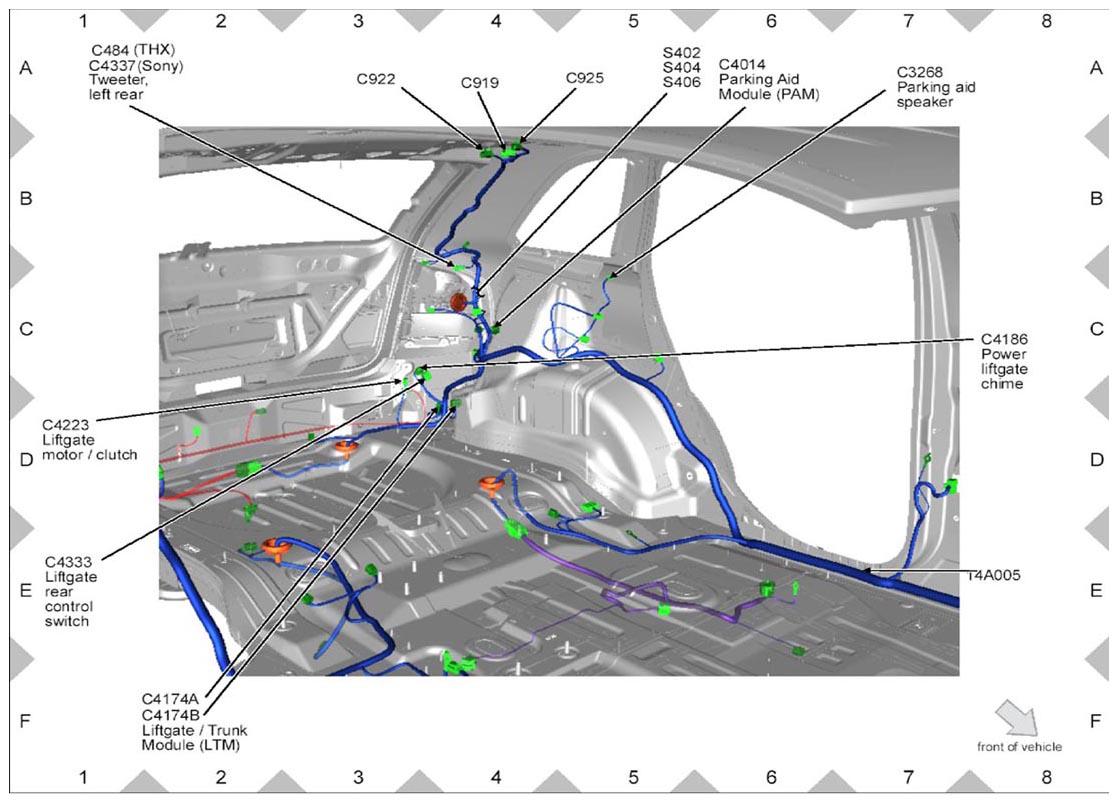

Fig 22: Rear Compartment Wiring Harness Connectors Location (LH; 1 Of 2)

G09219848

Courtesy of FORD MOTOR CO.

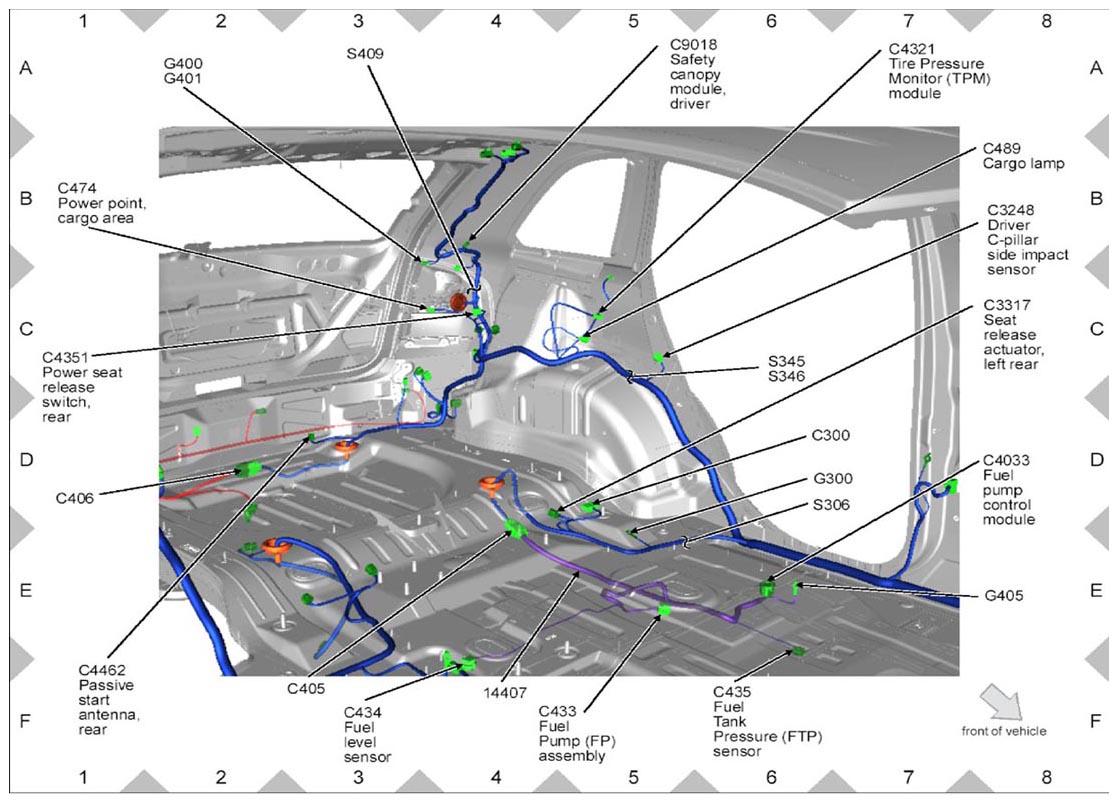

Fig 23: Rear Compartment Wiring Harness Connectors Location (LH; 2 Of 2)

G09219849

Courtesy of FORD MOTOR CO.

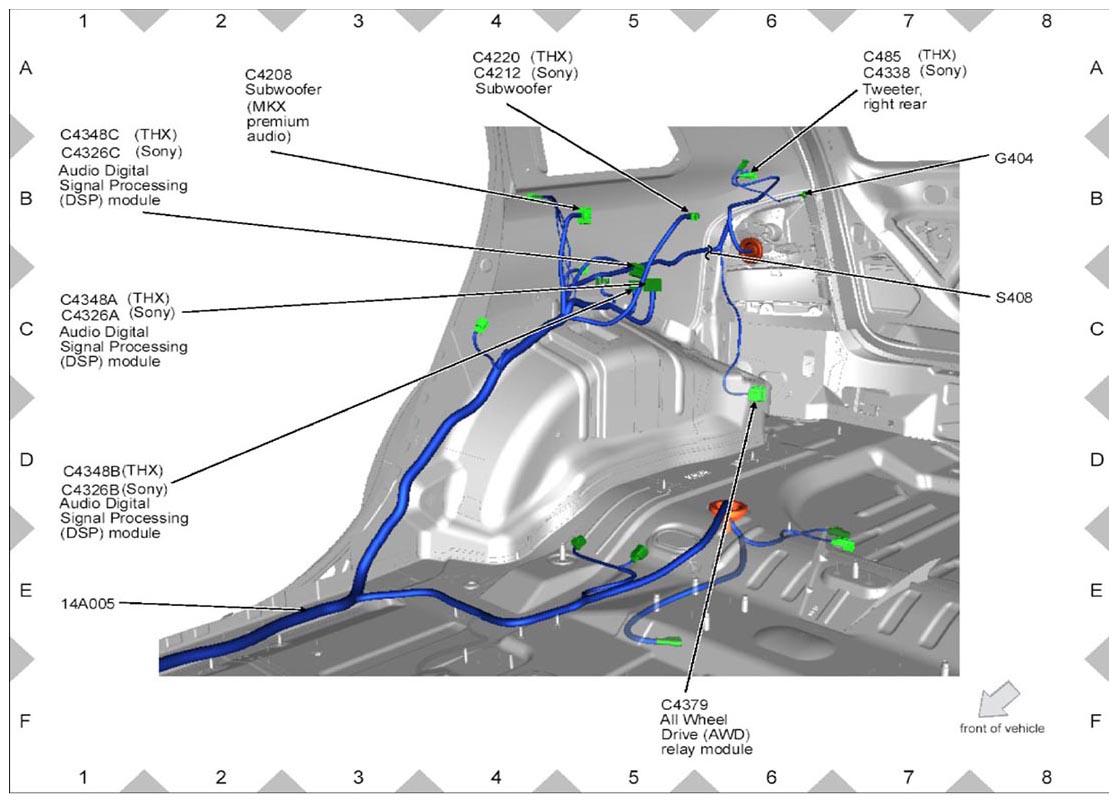

Fig 24: Rear Compartment Wiring Harness Connectors Location (RH; 1 Of 2)

G09219850

Courtesy of FORD MOTOR CO.

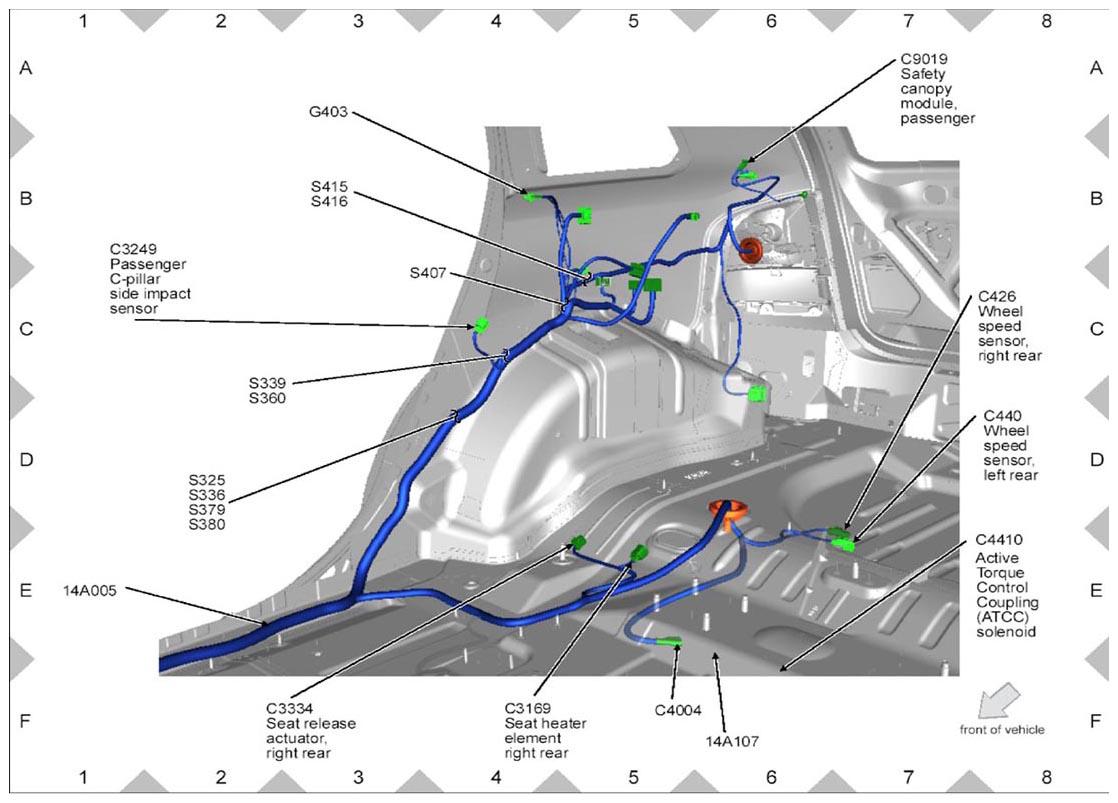

Fig 25: Rear Compartment Wiring Harness Connectors Location (RH; 2 Of 2)

G09219851

Courtesy of FORD MOTOR CO.

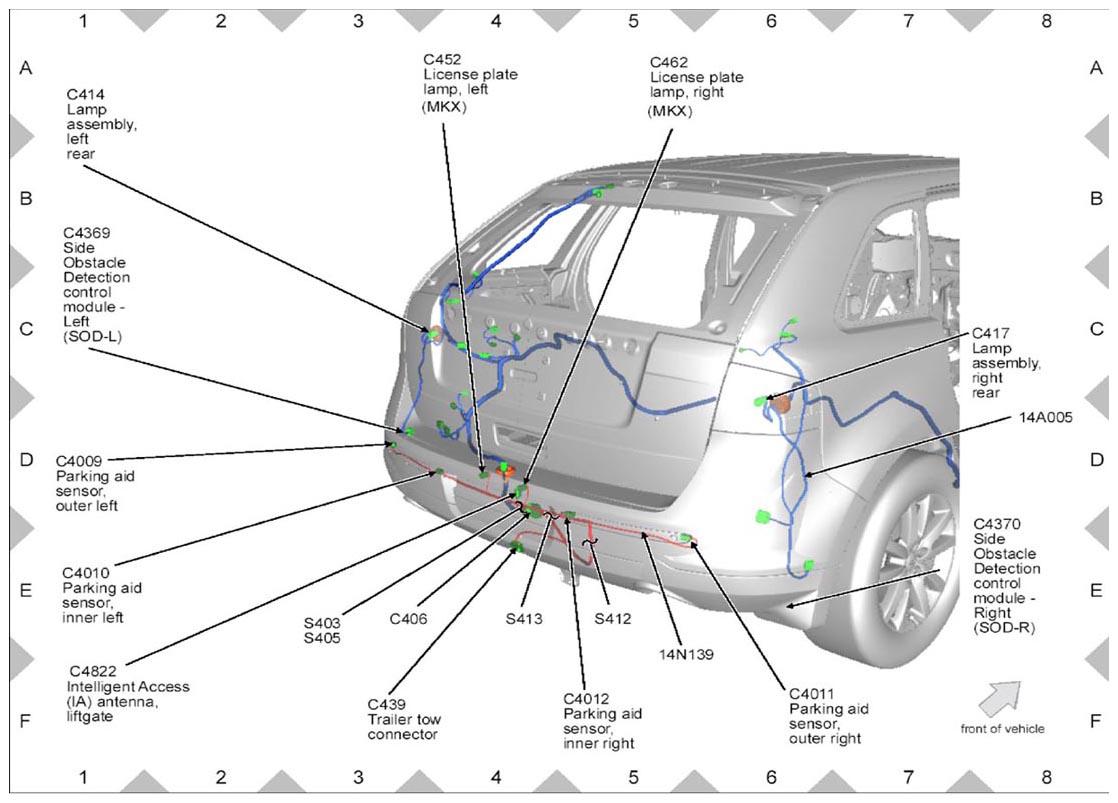

Fig 26: Parking Aid Sensor Wiring Harness Connectors Location

G09219852

Courtesy of FORD MOTOR CO.

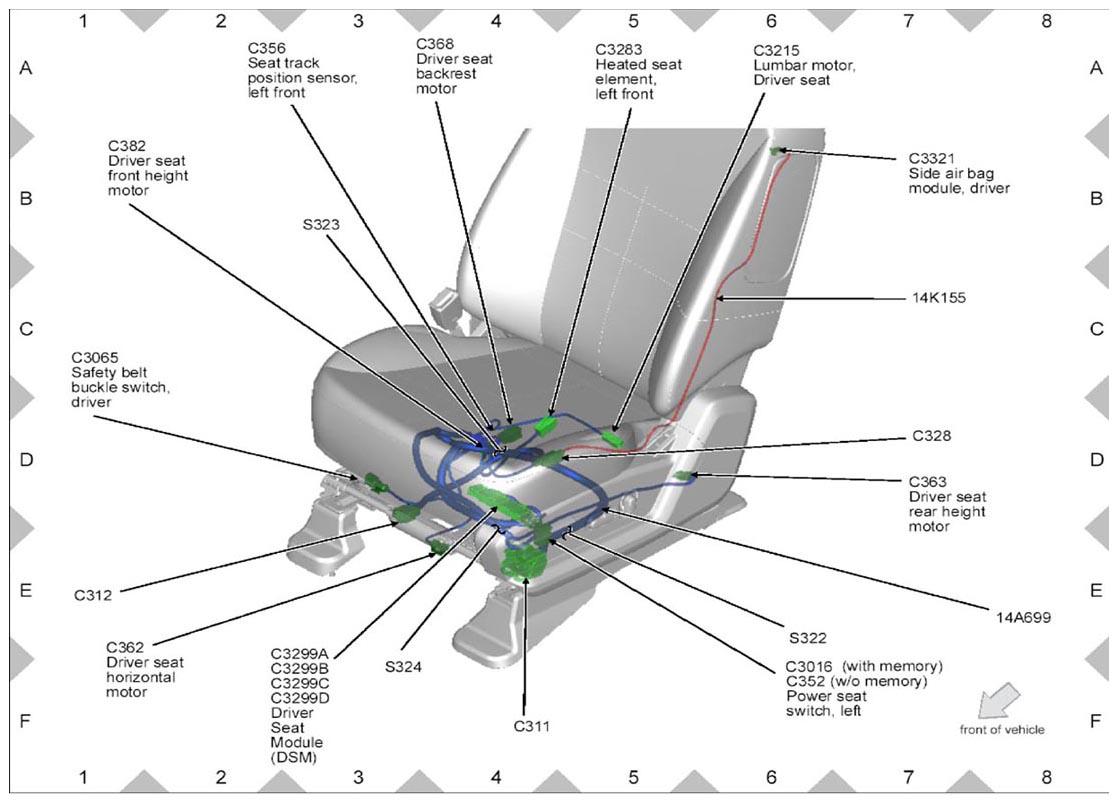

Fig 27: Driver Seat Wiring Harness Connectors Location (1 Of 4)

G09219853

Courtesy of FORD MOTOR CO.

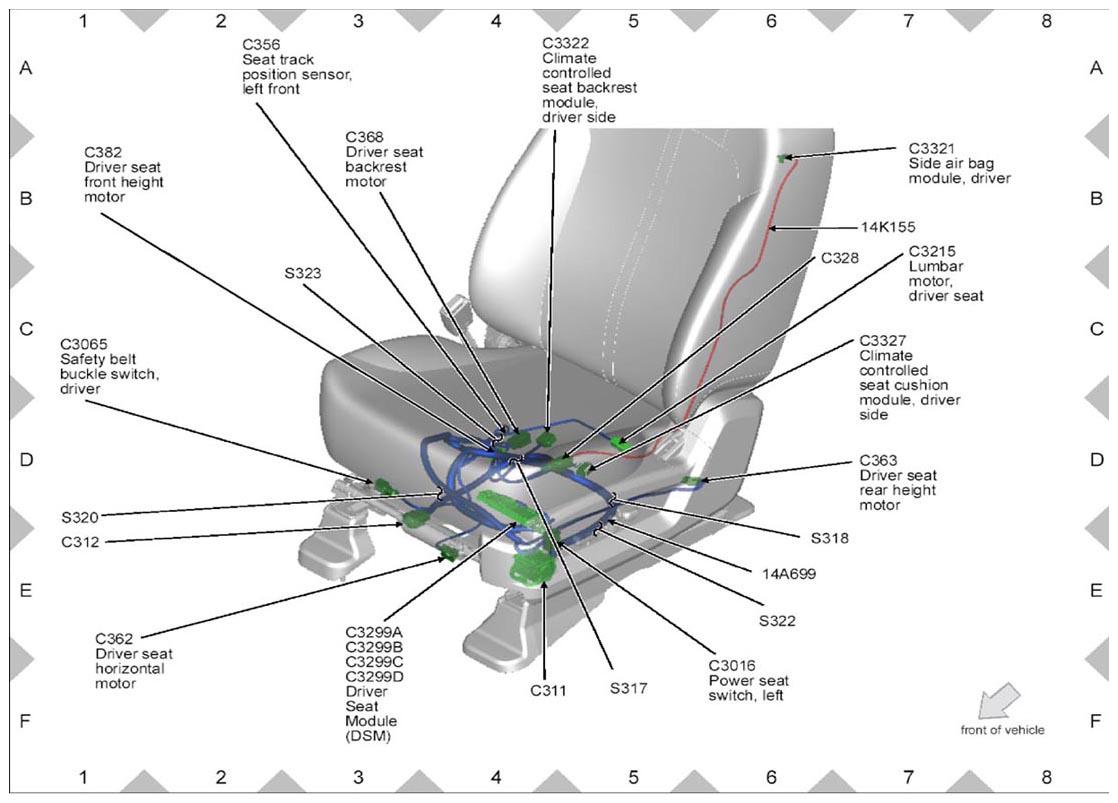

Fig 28: Driver Seat Wiring Harness Connectors Location (2 Of 4)

G09219854

Courtesy of FORD MOTOR CO.

Fig 29: Driver Seat Wiring Harness Connectors Location (3 Of 4)

G09219855

Courtesy of FORD MOTOR CO.

Fig 30: Driver Seat Wiring Harness Connectors Location (4 Of 4)

G09219856

Courtesy of FORD MOTOR CO.

Fig 31: Passenger Seat Wiring Harness Connectors Location

G09219857

Courtesy of FORD MOTOR CO.

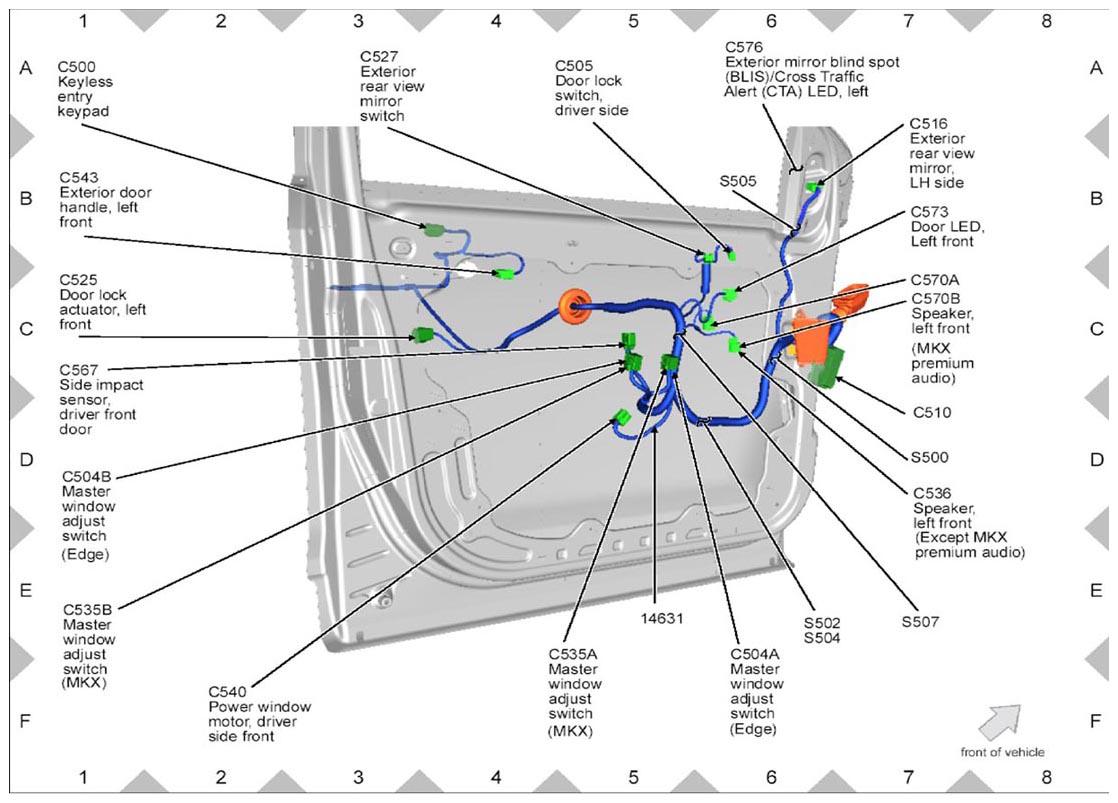

Fig 32: Front Door Wiring Harness Connectors Location (LH)

G09219858

Courtesy of FORD MOTOR CO.

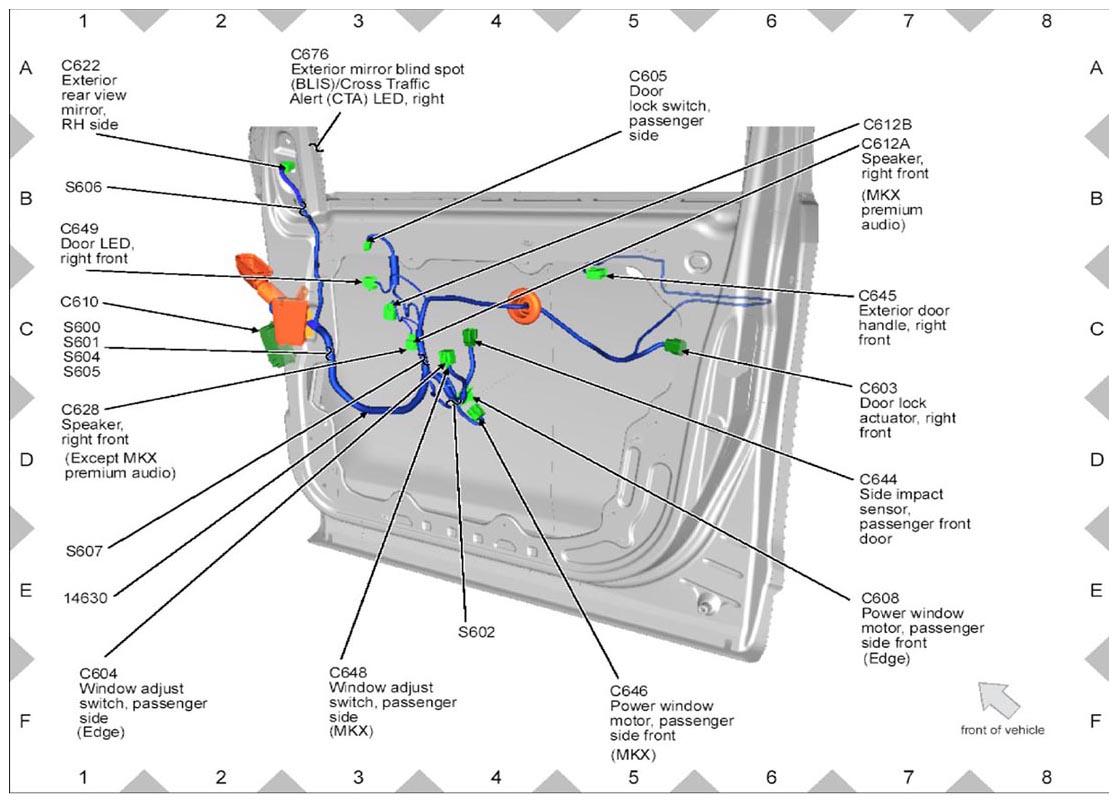

Fig 33: Front Door Wiring Harness Connectors Location (RH)

G09219859

Courtesy of FORD MOTOR CO.

Fig 34: Front Door Wiring Harness Connectors Location (LH)

G09219860

Courtesy of FORD MOTOR CO.

Fig 35: Front Door Wiring Harness Connectors Location (RH)

G09219861

Courtesy of FORD MOTOR CO.

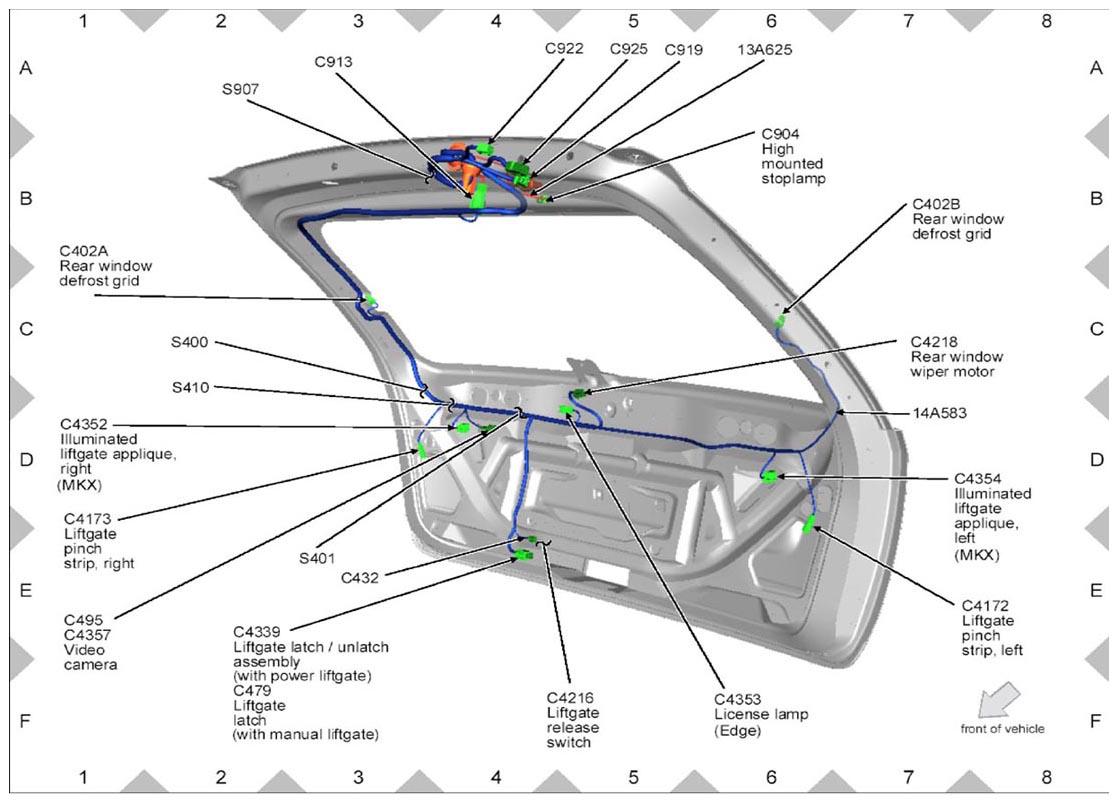

Fig 36: Liftgate Wiring Harness Connectors Location

G09219862

Courtesy of FORD MOTOR CO.

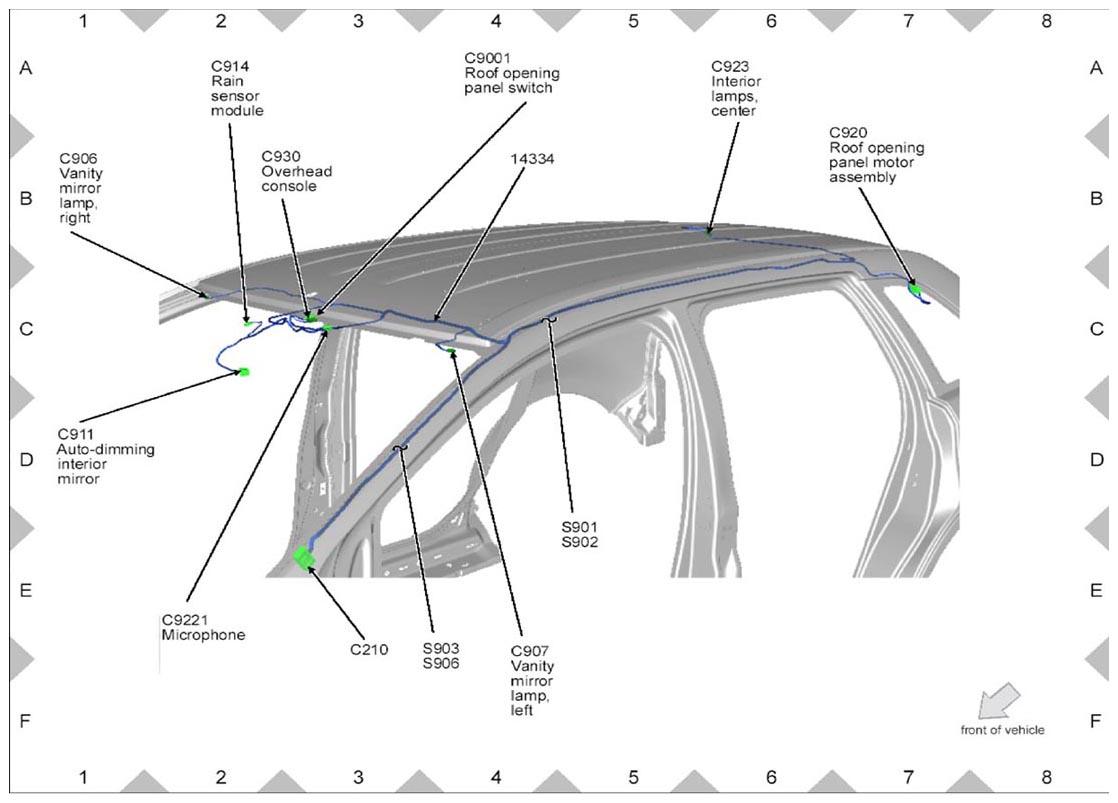

Fig 37: Roof Wiring Harness Connectors Location

G09219863

Courtesy of FORD MOTOR CO.
